Product Information

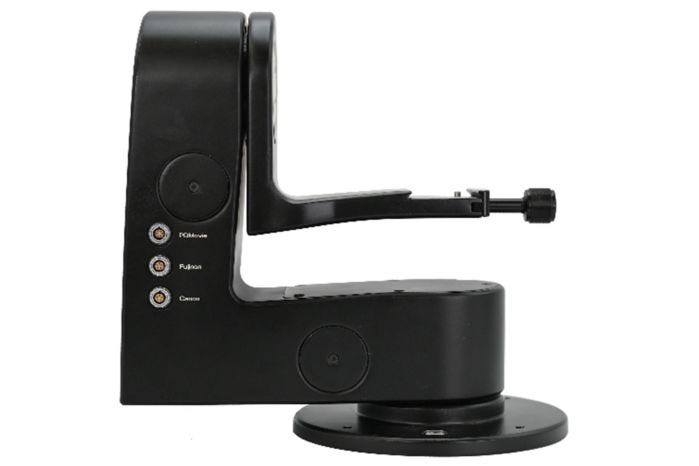

Zanus PAULINHOB PT Head
Light and compact version of Paulinho pan tilt head that does not have the base and cable pass through, but can make multiple turns in pan axis.
Control
Control app that is implemented on the robotic pan tilt head can be opened from any computer, tablet, smartphone, or similar device without the need to install additional software. Users have the option of joystick control with a great variety of different joysticks (any joystick with VISCA over IP, Skaarhoj configurable joystick, any Canon joystick and more). Our robotic pan tilt head is built for automation and its advanced communication protocol allows easy integration into automatic production workflows.
One of PaulinhoB’s main advantages is that a single operator can control multiple pan tilt heads from a unique control point.
Interface
PaulinhoB has power, ethernet and CAN connectors all with locking mechanism. This allows for multiple turns in pan axis without the risk of cable damage.
PaulinhoB uses 24V DC power supply.
Application
PaulinhoB pan tilt head is suitable for many types of surroundings such are event and congress spaces, smaller and local TV stations, places of worship, parliaments and conference rooms and sports venues and events.
- Superb motion quality control with the speed range of 0.01°/s – 30 °/s
- Multiple turns in the pan axis possible
- With various lens control interfaces such as Canon and Fujinon servo lenses, external follow focus motors, LANC, or Canon XC protocol over ethernet it is easy to turn any camcorder, box camera or DSLR into a PTZ camera
- Advanced preset options – Play and Run options for up to 100 presets with an advanced combination of preset execution and manual control
- Multiple head control – Multiple heads can be easily controlled from a single control point
- Modern and lightweight – Innovative L-shape design with the weight of only 2.9 kg (6.4 lb) and a camera payload of 5 kg (11 lb)
| Camera payload | 5kg |
|---|---|
| Weight | 2.9kg |
| Pan angle | ± 360° (multi turn) |
| Tilt angle | ± 180° |
| Pan/Tilt speed | 0.01 - 30°/s |
| Acceleration | 30°/s² |
| Power requirements | 24V DC, 5A |
| Dimensions | 257 x 264 x 168mm |
