Product Information
Zanus PAULINHO FOR BLACKMAGIC STUDIO CAMERA PT Head

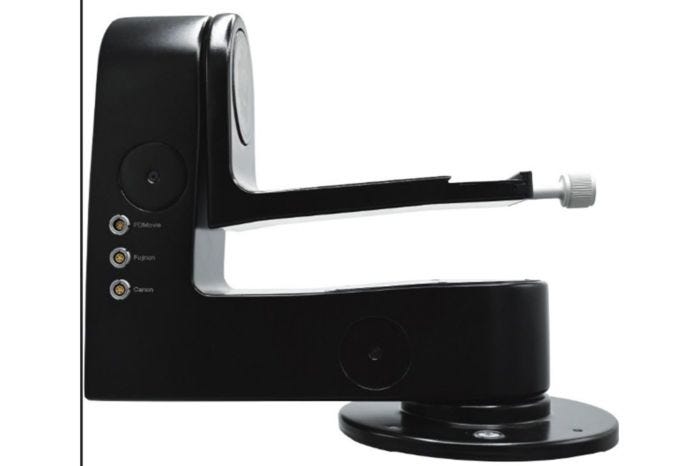

Paulinho robotic pan tilt head designed specially for Blackmagic Studio Cameras. Its geometry is a perfect match for the camera allowing smooth and in axis pan and tilt rotations without distortion.
Control
Control app that is implemented on the robotic pan tilt head can be opened from any computer, tablet, smartphone, or similar device without the need to install additional software. Users have the option of joystick control with a great variety of different joysticks (any joystick with VISCA over IP, Skaarhoj configurable joystick, any Canon joystick and more). Our robotic pan tilt head is built for automation and its advanced communication protocol allows easy integration into automatic production workflows.
One of PaulinhoB’s main advantages is that a single operator can control multiple pan tilt heads from a unique control point.
Interface
Paulinho pan tilt head for Blackmagic Studio Cameras has power, ethernet and CAN connectors all with locking mechanism. This allows for multiple turns in pan axis without the risk of cable damage.
CAN interface can be used to connect the PT head with other Zanus products like motorized lift or dolly on rails.
Paulinho pan tilt head for Blackmagic Studio Cameras uses 24V DC power supply.
Application
Paulinho PT head is an ideal solution to turn your Blackmagic Studio Camera into a PTZ camera. Additionally, with a very easy way to control multiple Paulinho PT heads, whole fleets of Blackmagic Studio PTZ Cameras could be set up in very short time and controlled remotely in an easy way.
| Camera payload | 5kg |
|---|---|
| Weight | 3.2kg |
| Pan angle | ± 175° |
| Tilt angle | ± 180° |
| Pan/Tilt speed | 0.01 - 30°/s |
| Acceleration | 30°/s² |
| Power requirements | 24V DC, 5A |
| Dimensions | 258 x 311 x 168mm |
