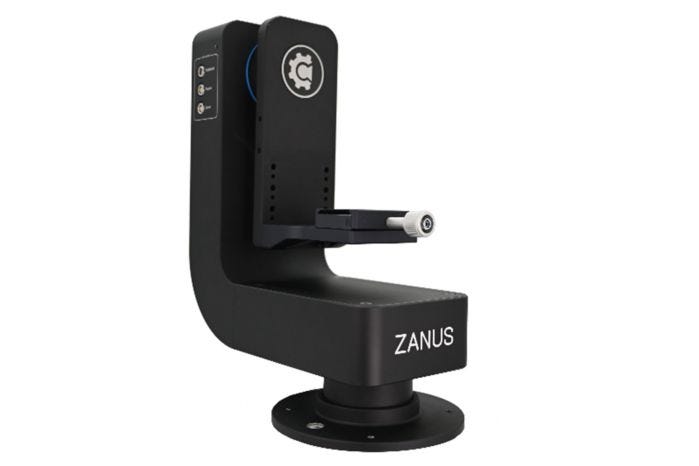

Zanus PAULIB PT Head Basic Package
Light and compact version of Pauli pan tilt head that does not have the base and cable pass through, but can make multiple turns in pan axis.
Control
Control app that is implemented on the robotic pan tilt head can be opened from any computer, tablet, smartphone, or similar device without the need to install additional software. Users have the option of joystick control with a great variety of different joysticks (any joystick with VISCA over IP, Skaarhoj configurable joystick, any Canon joystick and more). Our robotic pan tilt head is built for automation and its advanced communication protocol allows easy integration into automatic production workflows.
One of PauliB’s main advantages is that a single operator can control multiple pan tilt heads from a unique control point.
Interface
Connectors for the Ethernet, Power and CAN are all with locking mechanism. The CAN connector allows the head to be easily interfaced with other Zanus production robotics.
PauliB uses 12V DC power supply, which means that a standard 12V DC studio network can be used to supply the head.
Application
PauliB pan tilt head is suitable for many types of surroundings and it has already found use in sports events, small and large studios, churches, parliaments, etc.
- Wide speed range – Tight speed control for both pan and tilt in the range from 0.001°/s (4 days for a full rotation) up to 180°/s (2 seconds for a full rotation)
- Advanced control – Control app implemented on the pan tilt head (control from any computer, smart phone or tablet without the need for additional installation), Joystick control (any joystick with VISCA over IP protocol, configurable Skaarhoj joystick and more) and production automation software
- Compact and light – 20 kg payload with only 6.2 kg of weight
- Advanced preset options – Play and Run options for up to 100 presets with an advanced combination of preset execution and manual control
| Camera payload | 20kg |
|---|---|
| Weight | 6.2kg |
| Pan angle | ± 360° (multi turn) |
| Tilt angle | ± 180° |
| Pan/Tilt speed | 0.001 - 180°/s |
| Acceleration | 90°/s² |
| Power requirements | 12V DC, 5A |
| Dimensions | 367 x 288 x 167mm |
