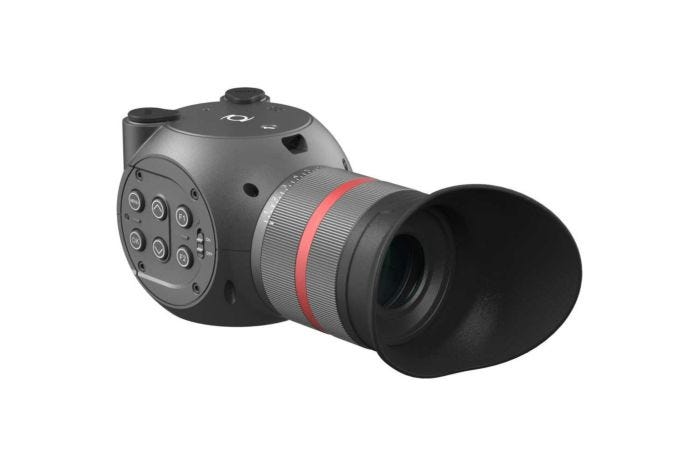

Z CAM EVF Electronic Viewfinder

The EVF101 Electronic Viewfinder from Z CAM offers a crisp viewing option for your Z CAM or other camera lacking an integrated viewfinder. This viewfinder has an HDMI input that supports up to UHD 4K30 video and an SDI input supporting up to 1080p60 video. A wireless viewing option supports HDR imaging via a dual-antenna 5 GHz interface.

EVF101 features include selectable and user-defined LUT support, two-pin LEMO power input, and an ARRI-style rosette mount with an M6 thread. Image display tools include focus peaking, zebra, waveform, histogram, and vectorscope functions. The EVF101's diopter adjusts from -8 to + 4, offering a wide range of eyesight correction that minimizes the need to wear glasses while operating your camera.

  • Resolution: 1440x1440
  • Wireless HDR
  • Bulit in LUTs
  • Built in exposure tools
  • Adjustable diopter
  • HDMI / SDI input
  • 1x Z CAM EVF Electronic Viewfinder
  • 1x D-TAP to 2 Pin Lemo Cable
Type LCD
Resolution 1440 x 1440
Size 2.89"
FOV 49.3º
Adjustable range -8 to +4
HDMI Input Video resolution up to UHD 30fps - Progressive Input Only
SDI Input Video resolution up to 1080p 60fps - Progressive Input Only
USB (Type A) Load user defined LUTs
Mounting Option Rosette with M6 screw thread
Input colour depth 10-bit
Exposure tools Zebra, False colour, Waveform, Histogram, Vectorscope, Frame line, Center mark, Safe area.
Other tools Focus peaking, magnifier
Built in LUTs Selectable LUTs & user defined LUTs
Antenna Dual antenna system
WiFi band 5GHz
HDR Supported
Power Input 2-pin LEMO
Power Consumption 5.5W (maximum)
LxWxH 174.5 x 76.3 x 73.3mm (approximately)
Net weight 612.6 gram (approximately)
