TVLogic F-5A: 5.5" Full Featured Field Monitor with FHD IPS-LCD

Availability:In stock
Cat No.
38830
SKU
TVL-F-5A
TVlogic

10+ in stock - in our EU warehouse. Allow 3-5 days for UK delivery.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£1,322.40 £1,102.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

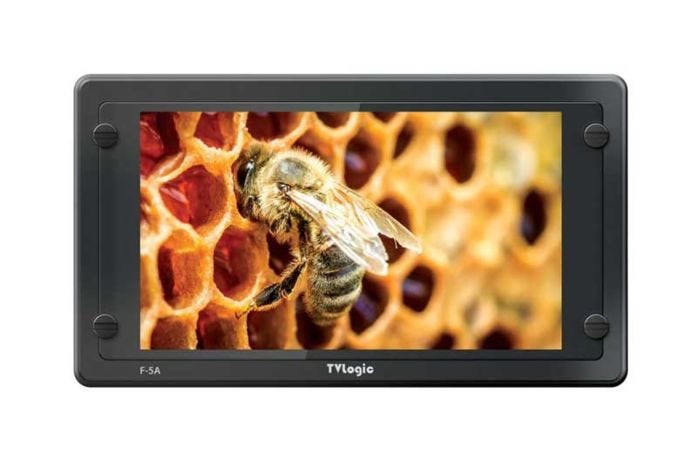

TVLogic F-5A 5.5" Full Featured Field Monitor with FHD IPS-LCD

The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit.

Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface.

And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only/ Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Assigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

H/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

  • 5.5” Full HD Resolution (1920×1080)
  • HDMI ↔ SDI Cross Conversion
  • HDR Emulation (PQ, HLG, S-Log3)
  • Custom 3D LUT Import
  • ARRI Metadata
  • Excellent Sharpness
  • Peaking Boost
  • Waveform / Vectorscope
  • H/V Flip
  • Auto Flip
  • Split Zoom
  • Focus Assist

Display Spec

Size 5.5"
Resolution 1920 X 1080 (16:9)
Pixel Pitch 0.0213(H) X 0.0639(V)mm
Colour Depth 16.7M
Viewing Angle 160°(H) / 160°(V)
Luminance 500cd/m2
Contrast Ratio 1,000 : 1
Display Area 122.7(H) × 69(V) mm
Input
1 X BNC 3G-SDI Input
1 X HDMI HDMI Input
Output
1 X BNC 3G-SDI Output
1 X HDMI HDMI Output
Input Signal
3G SDI 2.970Gbps
HD SDI 1.485Gbps
SD SDI 270Mb/s
HDMI 1080p (60/59.94/50/30/25/24/.23.98)/1080i(60/59.94/50)/720p(60/50)
SDI Input Signal Formats
SMPTE 425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE 296 720p (60/59.94/50)
SMPTE 274 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 125 480i (59.94)
ITU-R BT.656 576i (50)
Audio
Audio In Embedded Audio
Audio Out Analog Stereo (Phone Jack)
FPGA Functions 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata
Calibration 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
USB Firmware update by USB memory stick
