£3,192.00
£2,660.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

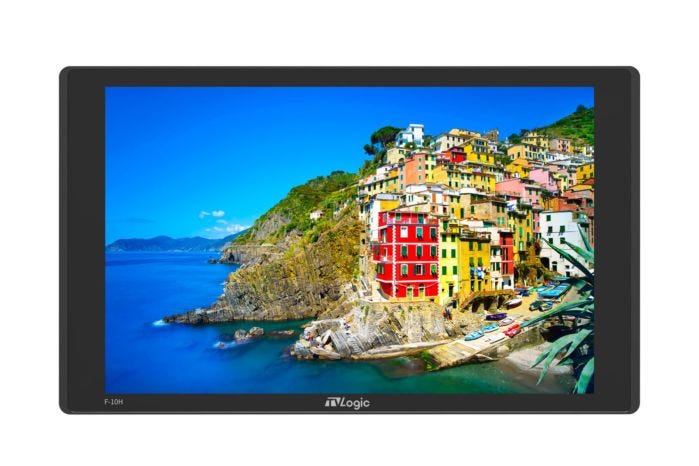

TVLogic F-10H 10in Field Monitor
TVLogic F-10H is a 10" field monitor with 1400 nits of brightness, part of the rugged and reliable F-series. It features a Full HD display with advanced features like Sharpness and Peaking Boost for enhanced visibility and precision in evaluating light and colour.
The monitor is 4K compatible, has a max luminance of 1400 nits, DCI-P3 coverage of 95%, and supports HDR (PQ / HLG / Slog3) as well as camera LUTs and custom 3D-LUT import.
Additional features include ARRI metadata display, scan/anamorphic desqueeze/zoom/split zoom, 3 x 3G SDI, HDMI SDI cross conversion, waveform/vectorscope, and DC 12V ~ 34V power supply. The F-10H also offers Luma(Y) zone check, H/V flip, auto flip, horizontal meter, and tempered glass treatment for durability.
- 10”, Full HD Resolution (1920 x 1200)
- 4K Compatible
- Max Luminance 1400nits
- DCI-P3 Coverage 95%
- Tempered Glass Treatment
- HDR (PQ / HLG / Slog3)
- Camera LUTs (Log-C, C-Log, S-Log1/2/3,Red Gamma3/4)
- Custom 3D-LUT Import
- Sharpness + Peaking Boost
- ARRI Metadata Display
- Scan / Anamorphic Desqueeze / Zoom / Split Zoom
- 3 x 3G SDI (1 x 3G SDI Selectable I/O)
- HDMI SDI Cross Conversion
- Luma(Y’) Zone Check (Zebra / Colour)
- H/V Flip, Auto Flip
- Horizontal Meter
- Waveform / Vectorscope
- DC 12V ~ 34V
- 1x F-10H 10in Field Monitor
|
Size |
10.1” |
|
Resolution |
1920 x 1200 (16:10) |
|
Pixel Pitch |
0.1128(H) x 0.1128(V) mm |
|
Colour Depth |
16.7M Colours (8 bit) |
|
Viewing Angle |
170°(H) / 170°(V) |
|
Brightness |
1400cd/m² |
|
Contrast Ratio |
1100:1 |
|
Display Area |
216.58(H) x 135.36(V) mm |
|
Input SDI |
1 x 3G-SDI Input |
|
Input SDI/Out Selectable |
1 x 3G-SDI In/Out Selectable |
|
Input HDMI |
1 x HDMI 2.0 Input |
|
Output SDI |
1 x 3G-SDI Output (HDMI-to-SDI Conversion Output) |
|
Output HDMI |
1 x HDMI Output (SDI-to-HDMI Conversion Output) |
|
Audio In |
Embedded Audio |
|
Audio Out |
Analogue Stereo (3.5mm Phone Jack) |
|
Power |
DC 12V 1.6A |
|
Power Consumption |
20 Watts |
|
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
|
Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
|
Dimensions Main Body |
258.0 x 154.0 x 29.8 mm / 10.15 x 6.06 x 1.17 in |
|
Dimensions Shipping Box |
320.0 x 240.0 x 87.0 mm / 12.59 x 9.44 x 3.42 in |
|
Weight |
1.2kg / 2.65lbs |
|
Basic Accessories |
D-Tap Cable, Camera Mount |
