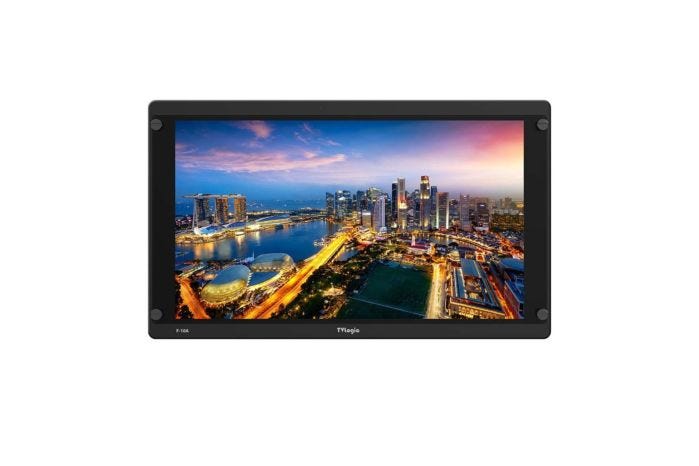

TVLogic F-10A 10" Full HD HDR Field Monitor

TVLogic F-10A 10" Full HD HDR Field Monitor

The F-10A is the new 10" field monitor with HDR capability and Full HD resolution.

Designed for versatile field production applications, the F-10A offers nearly half the weight and slimmer design compared to its class size. It also supports HDMI 2.0 and HDCP 2.2 to support 4K HDR 60Hz and supports various video signals (3G HD/SD-SDI, HDMI).

In addition, it provides various professional functions such as HDMI ↔ SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan and Image Overlay.

H/V Flip

Allows the displayed image to be flipped horizontally or vertically. This feature provides flexible mounting options for camera operators.

Luma(Y') Zone Check

Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Zoom

Magnifies the input signal from 0% to 90%.

Camera Lut.

Applies the LUTs to the outbound Log signal. A LUT for every major camera manufacturer has been included(LOG-C, C-LOG, S-LOG 1,2,3 and RED Gamma 3,4).

ARRI Alex Metadata over SDI

Takes the Metadata from the ARRI ALEXA is transported through the SDI outputs of the camera, and displays it on the monitor.

Split Zoom

Zooms the specified area sequentially.

Anamorphic Desqueeze

Supports several formats and resolutions that are ideally suited for anamorphic lenses and aspect ratios. When shooting anamorphic the image you are monitoring is an “unsqueezed” preview of what’s actually being recorded.

HDR Emulation

The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.

Key Features:

• 10” Full HD Resolution (1920 x 1080)
• 3 × 3G-SDI (1 × Selectable I/O)
• HDMI - SDI Cross Conversion
• HDR Emulation (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs
• ARRI Metadata Display
• Peaking Boost
• Waveform / Vectorscope
• Scan / Anamorphic Desqueeze / Zoom / Split zoom
• H Flip & V Flip (Auto & Manual)

• 10” Full HD Resolution (1920 x 1080)
• 3 × 3G-SDI (1 × Selectable I/O)
• HDMI - SDI Cross Conversion
• HDR Emulation (PQ, HLG, S-Log3)
• Custom 3D LUT Import by USB Flash Drive
• Various Built-in Camera LUTs

• 1x F-10A monitor
• 1x Camera Mount
• 1x D-Tap Adapter (Coil Type)
• 1x L-Type BNC Connector
