Product Information

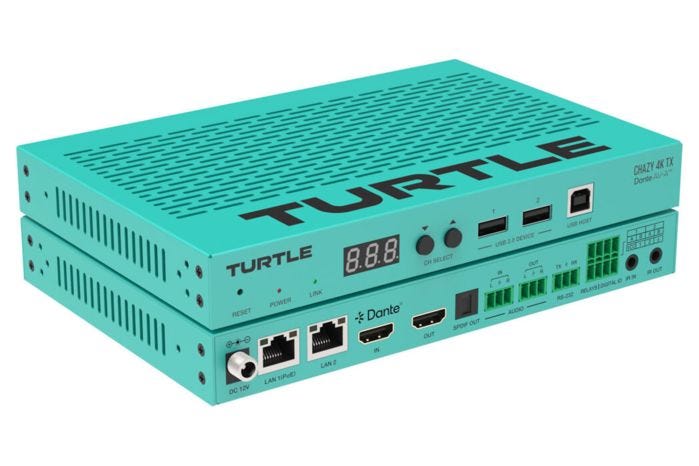

Turtle CHAZY 4K TX
The Chazy 4K Family offers a comprehensive solution for professional AV installations, combining cutting-edge technology with unmatched flexibility. Chazy 4K has 5 models in the fam: Chazy 4K Tx, Chazy 4K Rx, Chazy 4K USB-C Tx, Chazy 4K Wallplate Tx, and Chazy Control.
The Chazy fam delivers 2160 60Hz 4:4:4 HDR video, Dante AV-A™ which includes a 2x2 Dante audio license, JPEG 2000, and 7.1ch Dolby Atmos audio support. Featuring advanced capabilities like KVM, video wall configurations up to 9x9, hardware scaling, EDID management, true multicast support, and dual network ports on the Chazy Control, Chazy Tx, and Chazy Rx to keep AV and Control separated, the Chazy 4K Family is built for scalable, reliable, and high-performance installations. Fully HDCP 2.2 compliant, and TAA compliant, it’s the ultimate solution for corporate, educational, and entertainment environments. And to back all of these amazing features up, all Chazy 4K hardware comes with a 5-year warranty.
Chazy 4K Tx overview
The Chazy 4K Tx is a HDMI 2.0b Dante AV-A and JPEG 2000 encoder designed for deliveringstunning 2160 60Hz 4:4:4 HDR video. The Dante AV-A license is included and ready to go,which also has 2x2 Dante audio license. Chazy 4K Tx is PoE powered and supports a widerange of audio formats including 7.1 Dolby Atomos, and features advanced capabilities likeKVM, video wall configurations up to 9x9, hardware scaling, EDID management, HDCP 2.2, true multicast support, and dual network ports keep AV and Control separated. TAAcompliant, Chazy 4K Tx also comes with a 5-year warranty.
Dante AV-A & JPEG 2000. Low latency besties.
Bridging the best of both worlds, Dante AV-A works seamlessly with Dante Controller for full routing ability, whilst JPEG 2000 is a visually lossless, super low latency video codec.
Dante AV-A included.
Chazy 4K USB-C Tx comes with the Dante AV-A licence included so there are no hidden costs and nothing left to do other than plug them in, and open up Dante Controller to start your routing.
Dante Audio. Included.
With the included Dante AV-A licence, the Chazy 4K USB-C Tx also includes 2x2 Dante Audio. Extract audio from an HDMI source and send it to external speakers via Dante’s 2x2 audio channels.
Dante AV-A in hardware. A world first.
The optional Chazy Control box takes Dante Controller a step further by building it into hardware. The benefits of this include:
No need to run any software
You can now control your entire Dante network from any device with a web browser including iPad, Tablet, Smartphone. Control from Q-SYS, Crestron, and more using the free API.
Advanced EDID Management.
The Chazy 4K USB-C Tx simplifies connections with advanced EDID management, featuring automatic detection and the ability to load custom EDID tables directly through the WebGUI.
Hardware scaler built in.
The integrated hardware enables precise resolution matching and color space conversion between sources and displays eliminating issues with unsupported formats, scaling artifacts, or mismatched color profiles.
- Dante AV-A™ & JPEG 2000
- Dante AV-A™ licence included with 2x2 Dante audio
- 2160 60Hz 4:4:4 HDR
- PoE and 12V DC
- HDCP 2.2 & EDID Management
- 7.1ch Dolby Atomos Audio
- KVM and Video Wall up to 9x9
- Dual network ports
- TAA Compliant
- 5 Year Warranty
- 1x Turtle CHAZY 4K TX
|
Technical Specifications |
|
|
HDMI |
2.0b compliant |
|
HDCP |
2.2 compliant |
|
Video Bandwidth |
18Gbps |
|
Compression Codec |
JPEG 2000 or Dante AV-A™ |
|
Network Bandwidth |
1Gbps |
|
USB Bandwidth |
480Mbps |
|
Color Depth |
Input: 8/10/12-bit; Output: 8-bit |
|
Colour Space |
RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
|
HDMI Audio Formats |
LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTX-EX, DSD, DTS High Res, DTS-HD Master |
|
IR Level |
Default 12V, Optional 5V |
|
IR Frequency |
Wideband 20K – 60KHz |
|
ESD Protection |
|
|
Standard |
IEC 61000-4-2 ±8kV (air-gap discharge) & ±4kV (contact discharge) |
|
Connections |
|
|
Input |
1x HDMI (Type A, 19-pin female), 1x L/R Audio (3-pin 3.81mm Phoenix connector) |
|
Output |
1x HDMI (Type A, 19-pin female), 1x L/R Audio (3-pin 3.81mm Phoenix connector), 1x SPDIF OUT (Optical) |
|
Control |
1x LAN (PoE IEEE 802.3af) RJ45 jack, 1x LAN RJ45 jack, 1x RS-232 (3-pin 3.81mm Phoenix connector), 1x USB 2.0 HOST (Type B, 4-pin female), 2x USB 2.0 DEVICE (Type A, 4-pin female), 2x RELAYS (3-pin 3.81mm Phoenix connector), 1x IR IN (3.5mm audio jack), 1x IR Out (3.5mm audio jack) |
|
Mechanical Specifications |
|
|
Housing |
Metal enclosure |
|
Colour |
Turtle Aqua |
|
Dimensions |
204mm [W] x 136mm [D] x 25.5mm [H] |
|
Weight |
631g |
|
Power Supply |
|
|
Input |
AC100-240V 50/60Hz |
|
Output |
DC 12V/2.5A |
|
PoE |
IEEE 802.3af |
|
Power Consumption |
8.52W |
|
Environmental Specifications |
|
|
Operating Temperature |
32 – 104° F / -20 – 60° C |
|
Relative Humidity |
20% – 90% RH (no condensing) |
