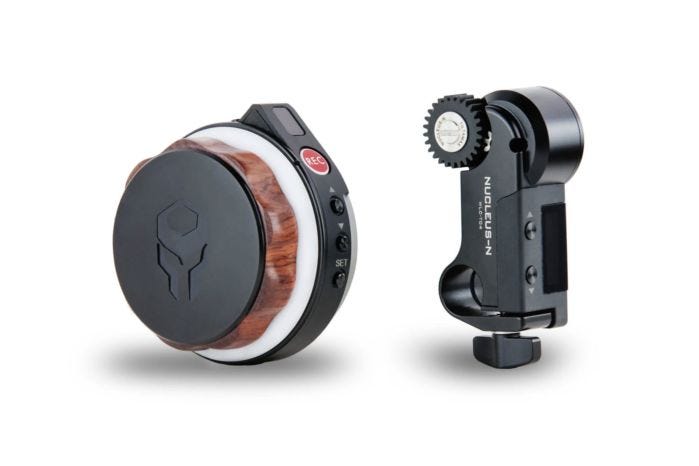

Tilta Nucleus-Nano Wireless Lens Control System

Tilta Nucleus-Nano Wireless Lens Control System

The Nucleus-Nano (WLC-T04) is a revolutionary wireless lens control system specifically designed for handheld gimbal systems. It makes it possible for a single operator to control a lens gear while simultaneously operating their gimbal.

The Nano system is compatible with all DSLR, mirrorless, and modified “cine-style” vintage photo lenses. The Nano is fully cross-compatible with the Nucleus-M controllers and motors.

The Nano Hand Wheel Controller has a compact knob design similar to professional follow focus hand units (the design is very similar to the Tilta Nucleus-M hand unit’s focus wheel).

The Nano Hand Wheel Controller has no delay. It is highly responsive, wireless, and accurate. It is powered via a single 14500 rechargeable battery (which is included in the kit) and yields a 6 hour operating time.

The Nucleus-Nano uses a brand new state of the art power-efficient miniature motor. The Nano Motor features low noise and high torque. It can perform super fast focus pulls with silent precision!

The built-in 15mm rod adapter allows for flexibility and compatibility with a wide range of camera rigs and professional mounting solutions.

The motor has a 5-18V input tolerance for power via a Micro USB port. This allows the motor’s power to be drawn from the G2X tilt motor’s 5V Micro USB output or via a P-tap to 5V Micro USB cable (sold separately).

The Nano Motor has its own built-in motor drive that communicates directly with the Nano Hand Wheel Controller. This negates the need to mount a separate MDR to your rig, allowing for a more compact camera setup and a quicker setup time.

Simply set the Nano Motor and Nano Hand Wheel Controller to the same channel and you will have full control. The wireless range of both the Nano Hand Wheel Controller and Nano Motor is 300 feet!

The Nano Motor allows for automatic calibration of the lens as well as a manual calibration if you are using lenses that don’t have hard end stops at close focus and infinity via the ability to set A-B limits on the Nano Hand Wheel Controller.

Every motor has a 0.8 mod, which is the standard gear size for most cinema lenses. The torque of the Nucleus-Nano Motor at 5.5V is 0.65N·m and at 14.8V is 1N·m

The Nano Motor is also able to connect to the Nucleus-M’s FIZ hand unit and hand grips, allowing for a variety of ways to control the motor as you see fit.

The kit also comes with a lightweight mounting frame for 15mm rods. The rod mounting frame is simple, reliable, strong, and streamlined.

Lastly, the Nano system can provide record Run/Stop functionality for numerous camera systems.

• SMALL & POWERFUL Motor Mounts to a 15mm Rod and Powers via Micro USB
• WIRELESS CONTROL From Up to 300 Feet Away
• PRECISE FOCUS via Marking Disc & A-B Hard Stop Limits
• COMPATIBLE with Most Lenses via the Motor's 0.8 Gear Pitch or Included Gear Rings
• MOUNTING OPTIONS Make the Hand Wheel Perfect for Gimbals, Shoulder Rigs, or Focus Pulling Stations
