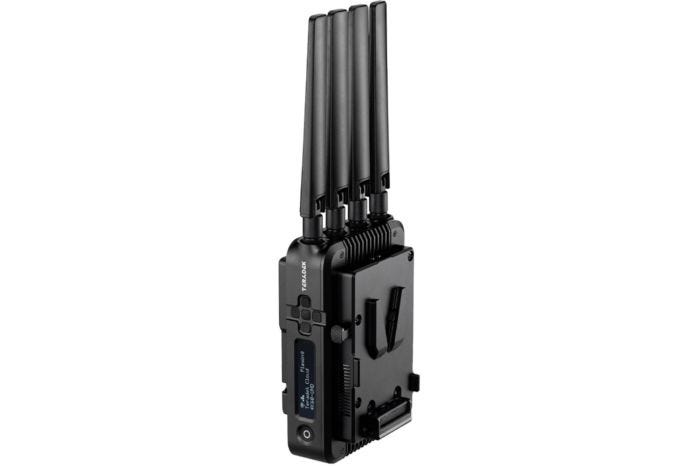

Teradek Prism Mobile 5G Single 5G-Q HEVC/AVC Encoder 26V Gold Mount
Availability:In stock
Cat No.
66777
SKU
TER-10-2857-5QG26
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Teradek Prism Mobile 5G Single 5G-Q HEVC/AVC Encoder No Mount
Prism Mobile is the most compact bonded cellular video encoder in its class, delivering reliable 4K HDR streaming from the most challenging locations for live coverage on the go and camera-to-cloud workflows.
Mission-Critical Network Bonding: Get exceptional worldwide internet connectivity virtually anywhere with two internal high-throughput Node modems with high-gain antennas uniquely designed for video applications. For maximum redundancy, Prism Mobile can bond* up to 9 network connections across cell phone Hotspots (4x), Ethernet (2x), and Cellular Modems (3x) – ensuring your stream never misses a beat.
Achieve Prism’s true potential with Core, Teradek’s streaming media orchestration platform. Core allows you to securely monitor, manage, route, distribute, and archive your live video feeds from anywhere in the world.
- Two built-in 5G or LTE modems with high-gain antennas
- CBRS & Private Mobile Network ready
- Built-in Network Bonding
- HEVC / AVC Compression
- 12G-SDI & HDMI I/O
- UP TO 4K60 10-bit HDR Video
- 8 Ch. Audio | 5.1 & 7.1 Surround Sound
- Licenses for Return Video and Multi-Output.
- Low-SWaP Design: 864g with Battery Plates
- Gold / V-Mount: 3hr Runtime**
- On-Board Recording, Store and Forward and Camera-To-Cloud Ready (Core, Frame.io, Sony C3 Portal, Sony Ci, PIX, AVID)
- Multiple Protocols: SRT, MPEG-TS, RTMP(S), RTP, RIST, RTSP, TRT, HLS, DASH, WHIP
- Prism app for iOS and Android
- Core Cloud compatible, Local Control SDK available
| Video Inputs | 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC) 1x HDMI 2.0 Type-A receptacle |
|---|---|
| Video Outputs | 1x 12G/6G/3G/HD/SD-SDI (75 Ω BNC) |
| Supported Resolutions | 4K DCI p23.98/24/25/29.97/30/50/59.94/60 4K UHD UHD p23.98/24/25/29.97/30/50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60 1080i 50/59.94/60 1080PsF 23/24/25/29/30 720p 50/59.94/60 576i, 480i |
| Audio Compression | AAC-LC |
| Audio Bitrate | 32kbps to 512kbps |
| Audio Sample Rate | 48kHz |
| Audio Input | Embedded over SDI, 3.5mm TRRS Stereo Line Level Analog or Microphone in, adjustable gain |
| Audio Output | 3.5mm Stereo Headphone output |
| IFB | Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A) |
