SWIT FM-215HDR 21.5 inch 1000nits 12G-SDI HDR Field Monitor
Availability:In stock
Cat No.
59300
SKU
FM-215HDR
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£1,627.20
£1,356.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

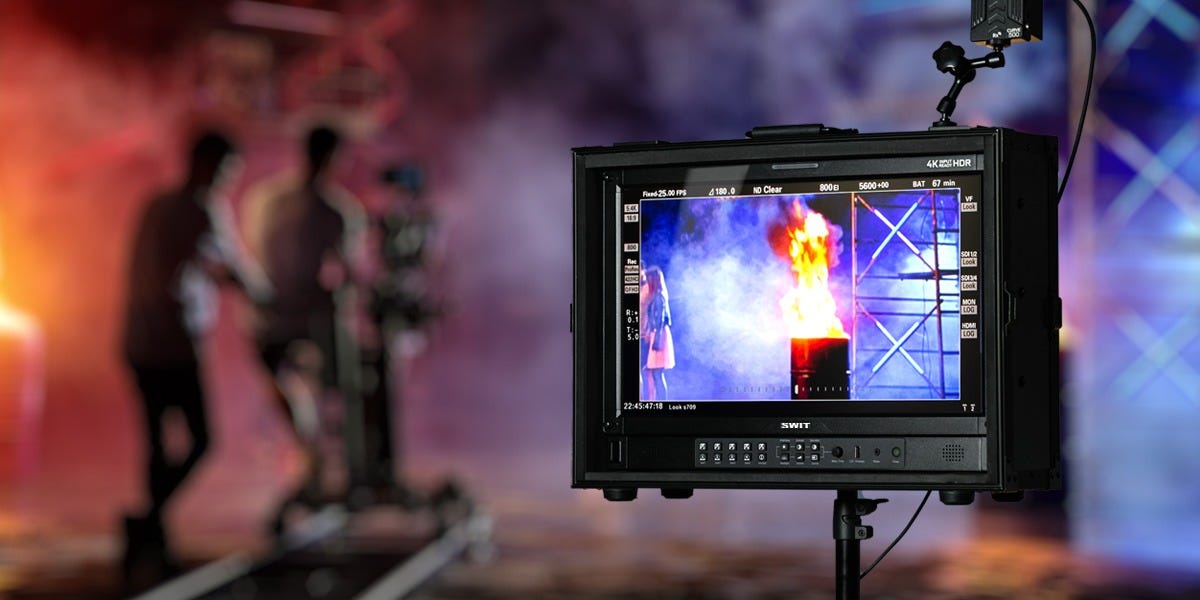

21.5” Field Production Monitor
4K inputs, 1000nits, HDR, Multi-view
FM-215HDR is a 21.5-inch 4K 12G-SDI input high bright HDR monitor for filmset or live streaming productions, go with flight case, screen protector and could be installed on C-stand for convenience field video productions.
1000nits Sunlight View HDR
The monitor is equipped with an advanced Quantum Dot LED (QD-LED) panel of 1000nits high bright backlight, outdoor sunlight viewable, and support PQ/HLG/S-log3 HDR monitoring.

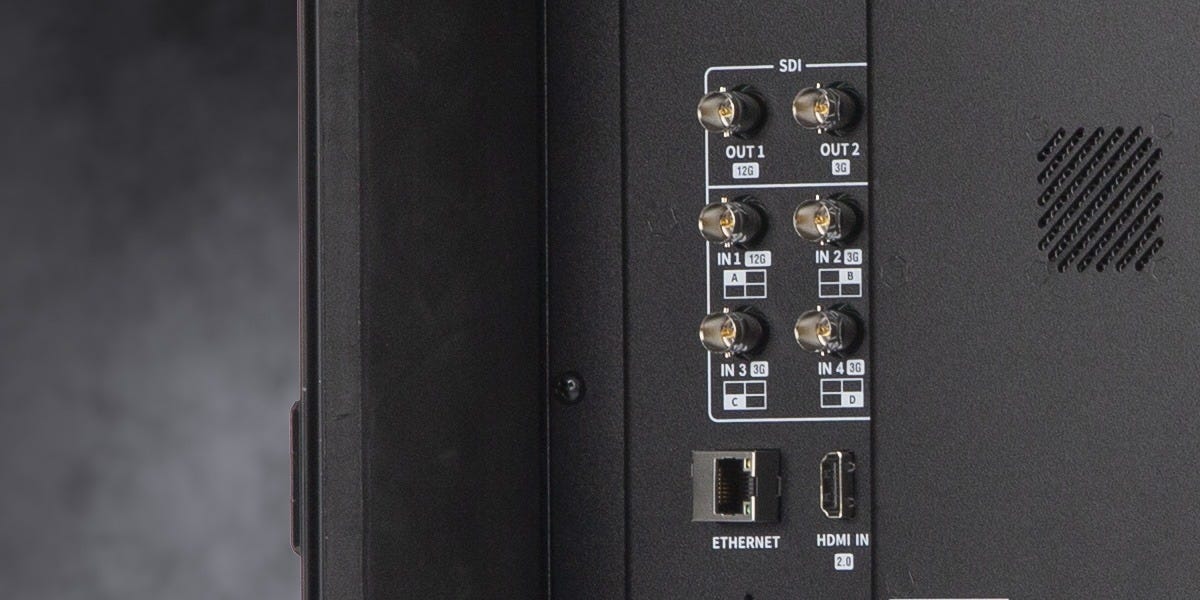

All 4K Input Interfaces
FM-215HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 3G-SDI Quadlink 4K input
- HDMI® 2.0 4K input

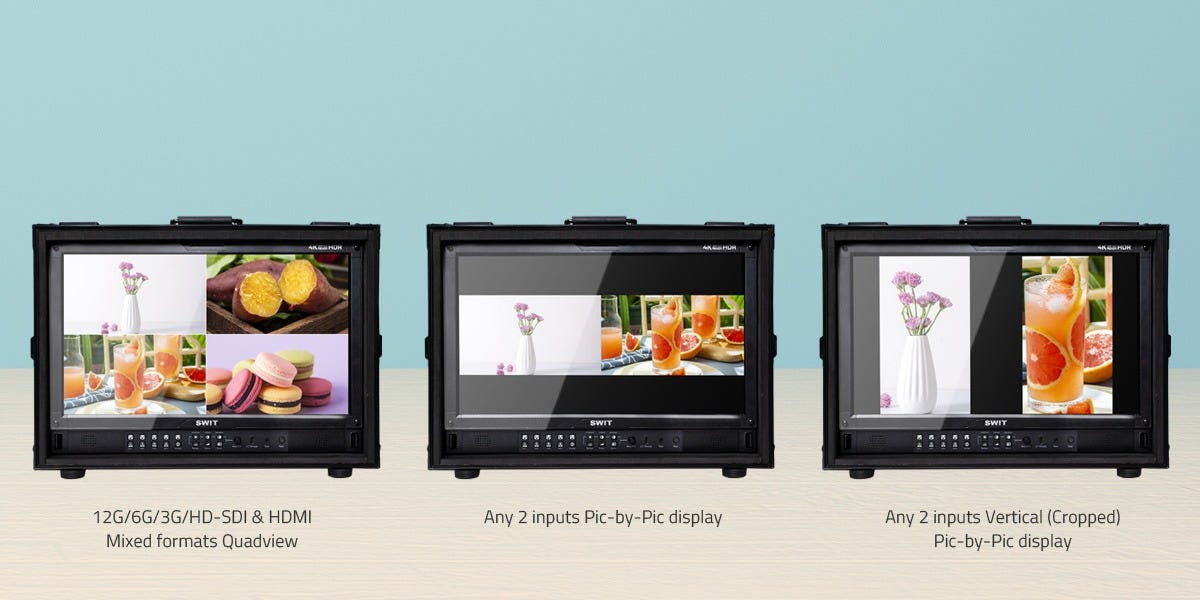

Multiview Display Mode
Supports 4x input video of mixed formats quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view, and any 2x inputs vertical (Cropped) display mode. You can select HDR/SDR gamma, color gamut independently for each input.

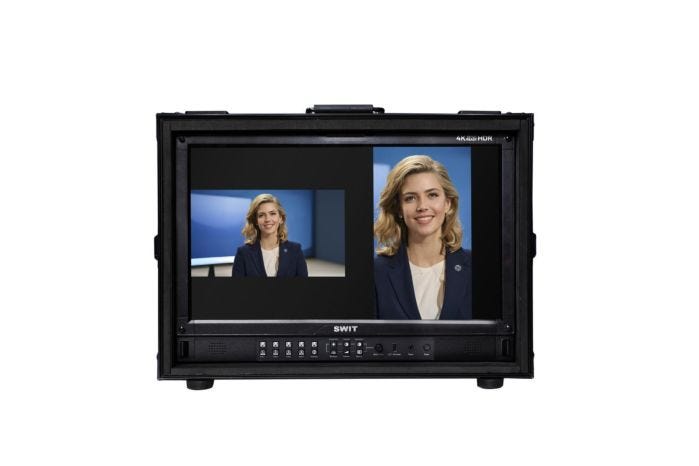

H/V Multi-platform Livestreaming View
1× input source to display regular horizontal view and cropped vertical view side by side simultaneously, for multi-platform livestreaming productions.

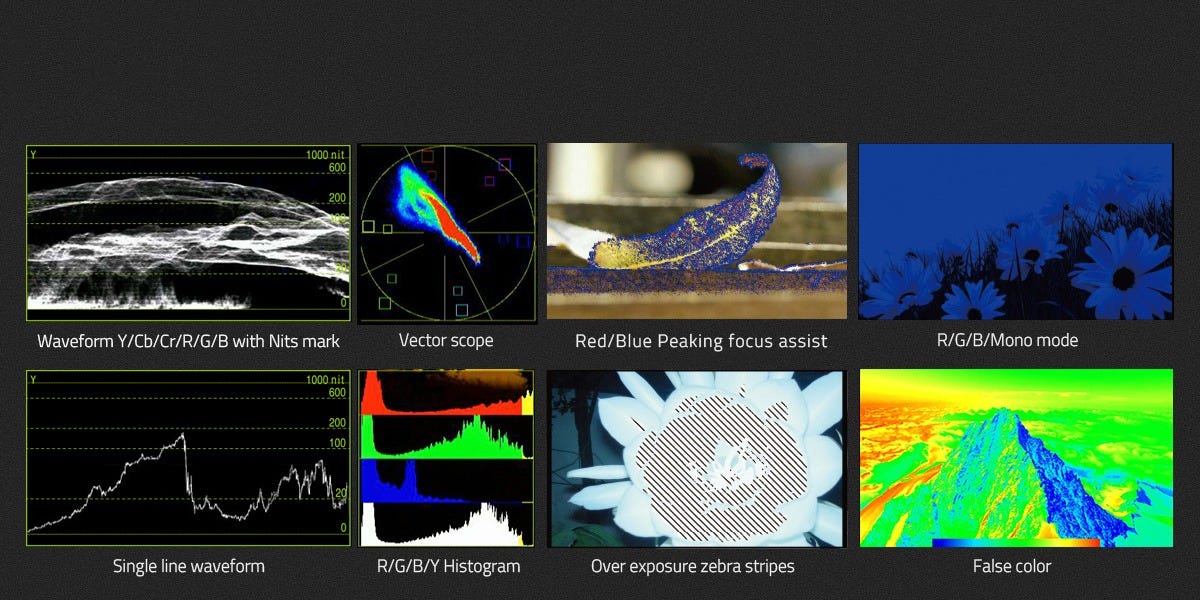

Multiple Video Analysis Patterns

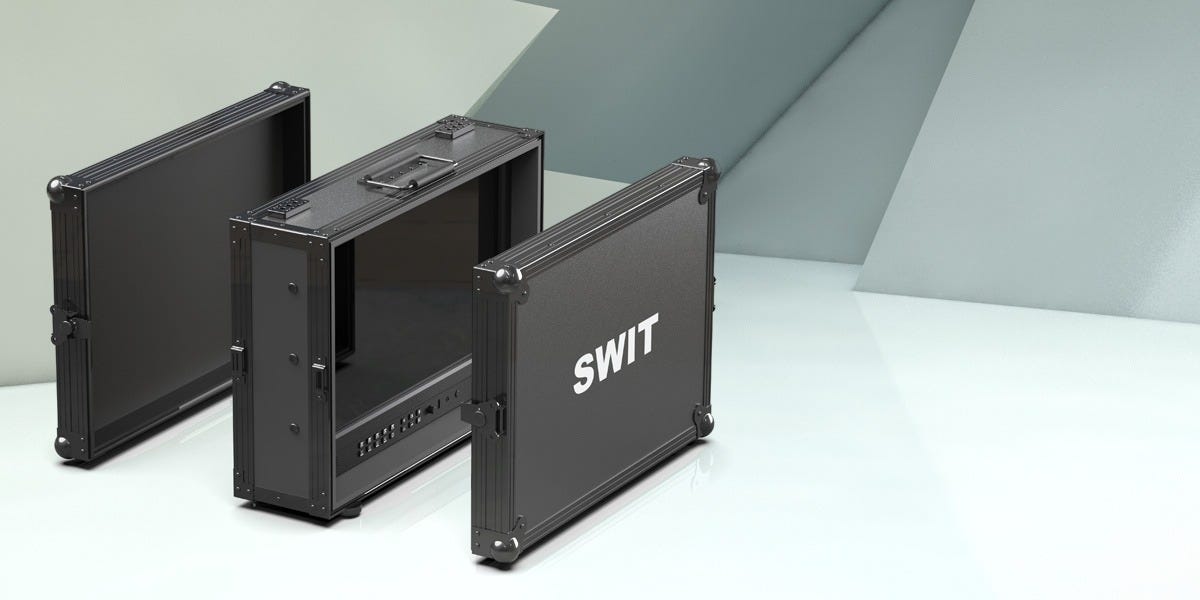

Go with Flight Case
The FM-215HDR monitor is shipped with strong aluminium flight case, for all-around protections on filmset.

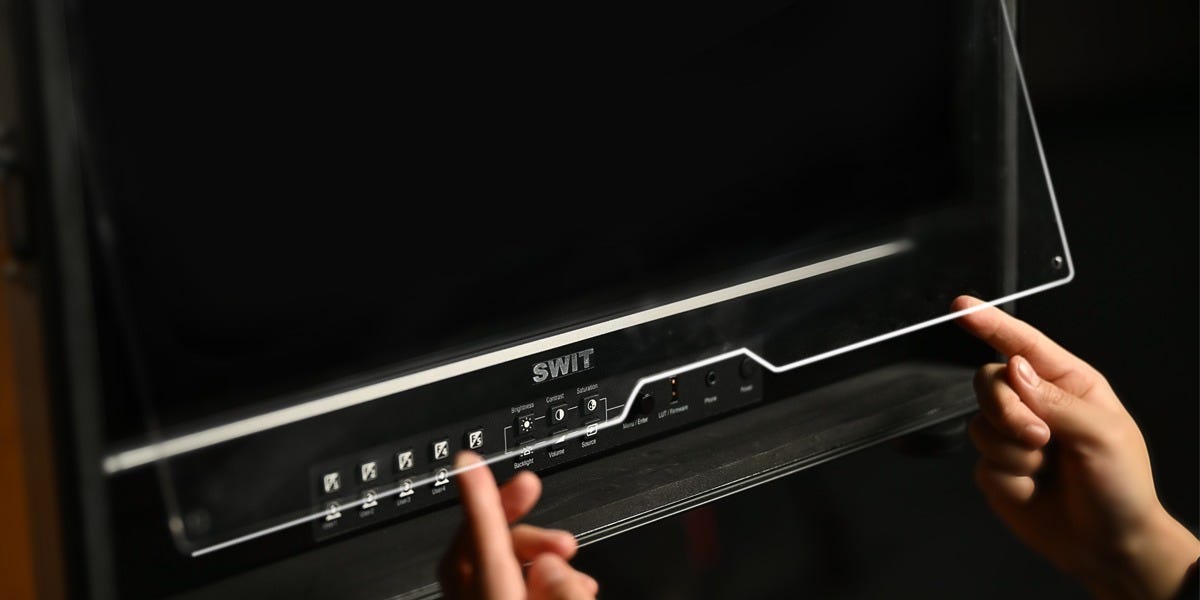

Equipped with Screen Protector
The FM-215HDR monitor provides an acrylic screen protector, with high transparency and anti-reflection.

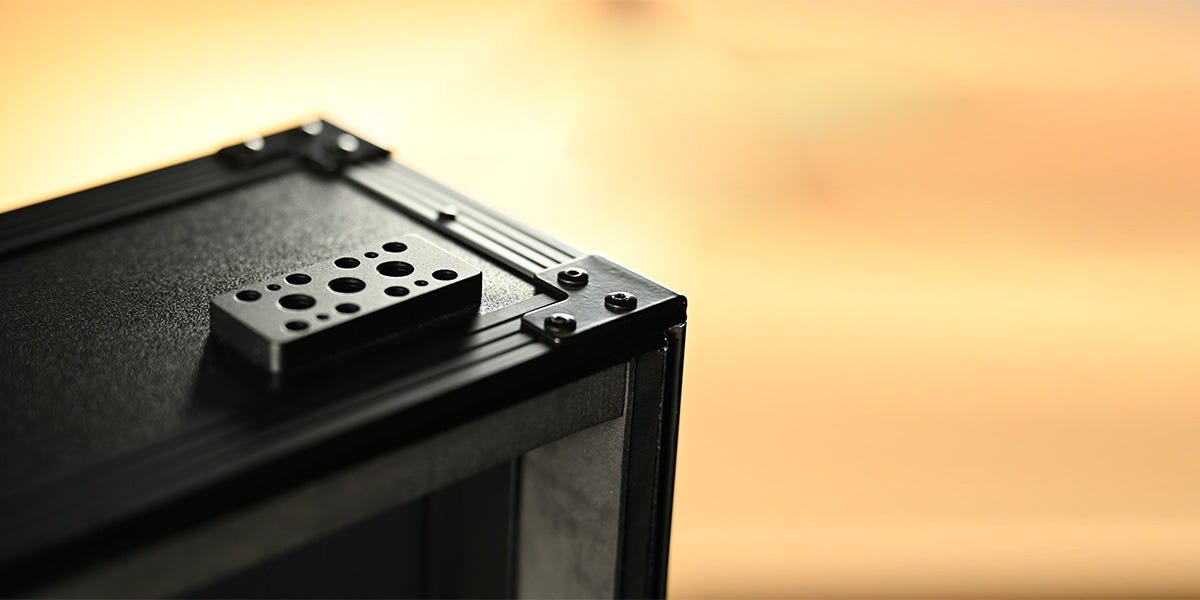

2× Top Cheese Boards
On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.

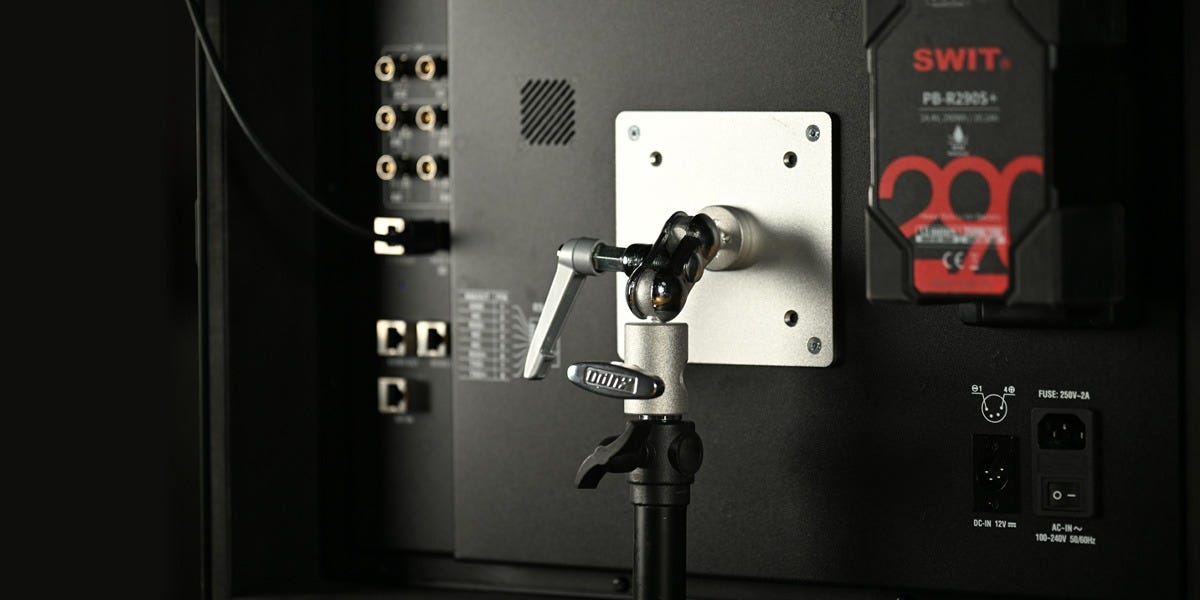

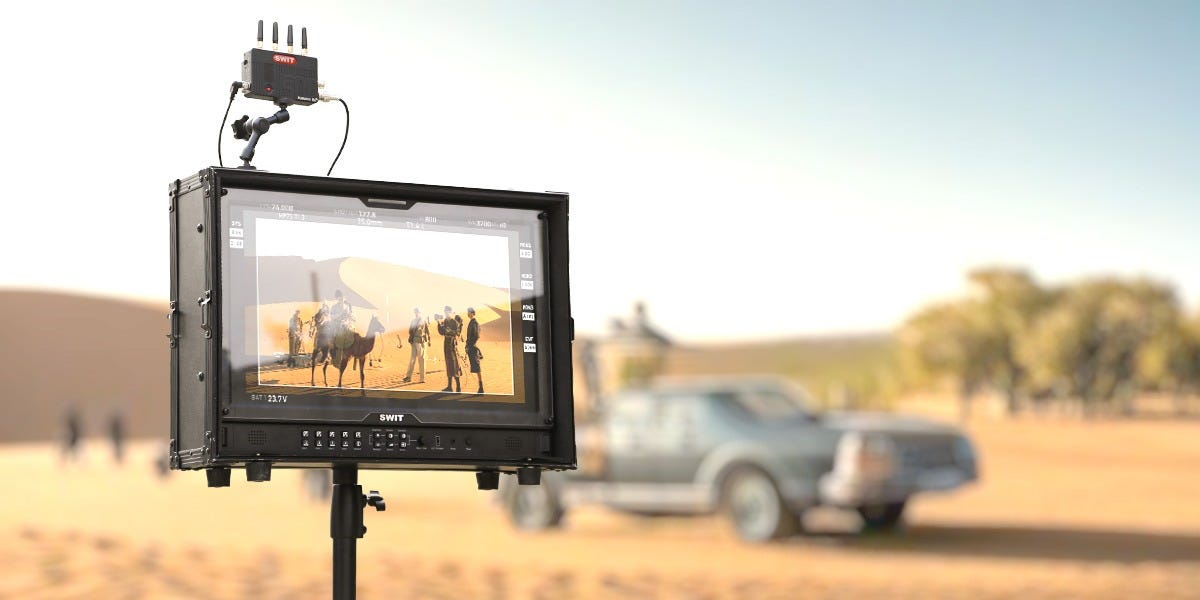

Optional VESA to C-stand Bracket
The monitor has standard 10×10 VESA mount, and provides VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket. (Optional purchased accessory)
- 21.5-inch 1920×1080 QD-LED Panel
- 1000nits high bright PQ/HLG HDR
- 100% DCI-P3 wide color gamut coverage
- VICO 1.97 A-class Eye Protecting LCD
- 12G-SDI, 4x3G-SDI, HDMI®2.0 4K input
- 4-ch SDI/HDMI® mixed formats multiview
- Any 2 inputs mixed PBP or PIP view
- Horizontal and Vertical (cropped) PBP view
- Zero latency video processing (0.01frame)
- 3DLUT Auto Self-calibration without PC
- Built-in Multi camera Delog LUTs
- User 3DLUTs upload via USB
- Waveform / Focus assist / False color / Zebra
- With flight case and screen protector
- Optional VESA to C-stand adaptor
- FM-215HDR
- Install Plate x2
- Screen Protector
- Flight Case
| Display | |
|---|---|
| Panel type | QD-LED |
| Size | 21.5 inches |
| Display area | 476×268mm |
| Resolution | 1920×1080 |
| Aspect ratio | 16:09 |
| Brightness | 1000nits |
| Contrast | 1000:01:00 |
| Color depth | 10-bit |
| Signal process | 18-bit |
| Viewing angle | 178°(H) /178°(V) |
| Input | |
| BNC ×1 | 12G/6G/3G/HD/SD-SDI input |
| BNC ×3 | 3G/HD/SD-SDI input |
| HDMI® ×1 | HDMI® 2.0 input |
| RS485 ×1 | TSL 3.1/4.0 UMD input |
| RS485 ×1 | GPI (Tally) input |
| RJ45 ×1 | 1000M Ethernet input for Webserver IP control |
| Output | |
| BNC ×1 | 12G/6G/3G/HD/SD-SDI loop output |
| BNC×1 | 3G/HD/SD-SDI loop output |
| RS485 ×1 | TSL 3.1/4.0 UMD output |
| Analog audio | 3.5mm headphone and speaker |
| Video Format | |
| SDI 1 | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 2048×1080i (50 / 59.94 / 60) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
| SDI 2/3/4 | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94), 576I (50) | |
| Quad Link 4K (Each channel) | 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| HDMI® | 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) | |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| General | |
| Input voltage | DC 12V-17V, AC 100-240V, 50/60Hz |
| Power consumption | 60W |
| Working temperature | 0°C～+50°C |
| Working humidity | 10%～90% |
| Storage temperature | -15°C～+60°C |
| Storage humidity | 10%～90% |
| Dimensions | 570×405×260mm (with case) |
| Net weight (main body) | 14kg (with case) |
