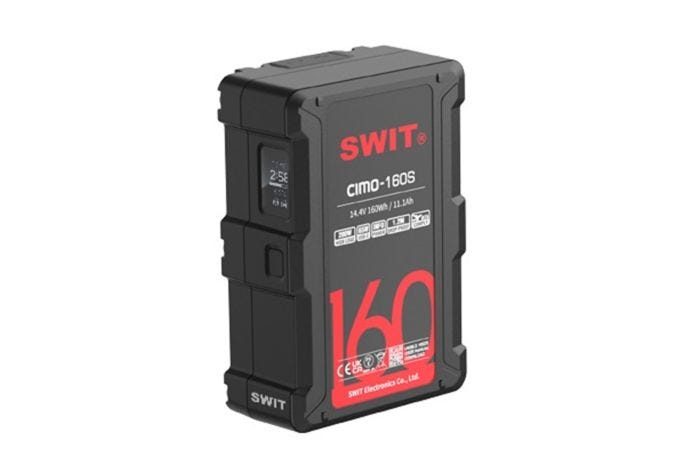

SWIT 160Wh USB-C OLED info Cine V-mount Battery

Availability:In stock
Cat No.
69272
SKU
CIMO-160S
SWIT

3 in stock for Immediate Dispatch

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£410.40 £342.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

SWIT 160Wh USB-C OLED info Cine V-mount Battery

The CIMO series cine class V-mount batteries featured high power load, 2× D-tap, 65W USB-C, OLED power info display, battery life inspection and 1.2m drop-off proof for professional cinematographers.

14.4V, 160Wh Capacity
CIMO-160S consists of 16pcs ternary lithium cells, 14.4V nominal voltage, 160Wh, 11.1Ah large capacity.

The ternary lithium cells provide higher energy density, achieve higher capacity with a smaller size, and excellent low-temperature performance, capable of supplying power under -20°C cold environment.

200W Constant / 270W Peak High Load Output
CIMO-160S outputs at least 200W/16A high load even at 1% capacity (Peak load up to 270W), to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output.

100W 6A Fast Charging
CIMO-160S supports 100W/6A fast charging by SWIT PC-P461S / MATRIX-S8 / S-3812S chargers, twice the charging speed, and the 6A fast charging will not affect the lifespan of ternary lithium cells.

The 160Wh battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

USB-C 65W Output
The USB-C port of CIMO-160S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0 universally compatible protocols.

USB-C 60W Charging Input
The battery can also be charged by USB-C charger of PD2.0/3.0 ≥60W power, fully charged within 4 hours.

* Please note that<60W low power USB-C chargers are unable to charge this battery.

LED Torch
You can double press the Power Check button to switch on LED torch on the rear side of the battery, to help you to find V-mount plate in dark production environment.

Double press the Power Check button again to switch the light off, and it will be automatically switched off after 60 seconds.

1.2 meters Drop-off Proof
CIMO series batteries are dual housing designed and can survive from 1.2 meters drop-off at any angles, strong and reliable for filmmakers.

Battery plate V-Mount
Nominal voltage 14.4V
Capacity 160Wh, 11.1Ah
Power Load 200W, 16A constant; 270W peak
Power IN&OUT Electrodes: 200W 16A out, 16.8V 8A(Max) in
D-tap×2: (Plug 1×D-tap) 200W 16A out
(Plug 2×D-tap) 200W 16A out in total
Charging through D-tap: 16.8V 8A(Max) in
USB-A: 5V/9V(Max) 2A out, 18W
USB-C out: 65W, 5V/9V/12V/15V/20V(Max)=3.25A
BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
USB-C charging in:
USB-C to C Charger Request - PD2.0/3.0, Power ≥60W
USB-A to C Charger Request - 5V only
Dimension 144×100×51mm
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C
Net weight Net 1.085kg; With package 1.127kg
