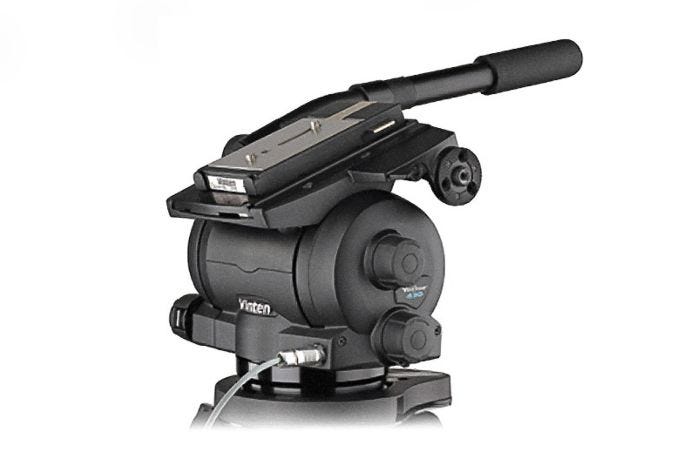

Vinten Vector 430i Tripod Head
Availability:In stock
Cat No.
22382
SKU
V4089-0001
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£13,980.00
£11,650.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Vinten Vector 430i Tripod Head
The new Vector 430i delivers precise positional data for virtual and augmented reality applications in outside broadcast and studio environments.
The pan and tilt head incorporates a new Intelligence Module allowing semi automatic set-up and slide plate tracking. When combined with the VRI box this provides precise real-time digital electronic positioning of pan and tilt to allow graphics to be placed perfectly into the live environment. The positional information is also displayed on a graphical user interface for ease of set up and calibration.
These features, combined with the functionality of the innovative Vector 430, make the Vector 430i an ideal choice for EFP camera set-ups where virtual reality is required - now or in the future.
- Precise, real time digital electronic positioning of pan and tilt
- Small, lightweight and high capacity
Virtual Reality Interface Box
The VRI box enables the use of the Vector 430i, 750i, and 950i pan and tilt heads in virtual reality applications. The box processes the positional data from the ehad encoders and also offers a direct interface to lenses with encoder outputs (or bolt on lens encoders) to provide a single data stream to the graphics rendering system. Each VRI box is supplied with mounting brackets, GUI, and head interface cable.
Key Features:
- Small & lightweight
- Semi automatic set-up
- Ideal choice for EFP camera set-ups
- Precise, real time electronic positioning
- Small & lightweight
- Semi automatic set-up
- Ideal choice for EFP camera set-ups
- Precise, real time electronic positioning
- Vinten Vector 430i Tripod Head
| Height | 20 cm / 7.9 " |
| Length | 20 cm / 7.9 " |
| Width | 28.5 cm / 11.2 " |
| Weight | 12.1 kg / 26.7 lbs including wedge adaptor and pan bar |
| Capacity Range | 10 to 43 kg / 22 to 94.8 lbs |
| Tilt range @ 37 kg / 81.6 lbs | ±90° |
| Tilt range @ 43 kg / 94.8 lbs | ±40° |
| Pan Resolution | 1.48 million counts per 360° |
| Tilt Resolution | 1.48 million counts per 360° |
| Encoder Power Requirements | 5 volts dc ±10% [supplied by the VRI box] |
| Platform Adjustment | +5.5 to -10.6 cm / +2.2 to -4.2 " |
| Pan Bar | Single telescopic |
| Camera Fixing | EFP Quickfit Automatic Adaptor [3761-3] |
| Levelling Bubble | Illuminated |
| Drag Knobs | Backlit and calibrated |
| Counterbalance | Fully variable with digital readout |
| Base Fixing | 4 bolt flat with Quickfix groove |
| Colour | Black |
| VRI Box | |
| Power In | 110-250v AC or 9-28v DC, Power consumption 80w |
| Power Out | 12v DC@ 1A/ 24v DC @ 1A |
| I/O | Genlock ( 1 in, 2 out), Devicelink.i, Lens encoders (Quadrature) |
| Tracking Data Output | RS422, Radamec D1 packet |
