VariZoom VZCPM-K5 CP Micro with Jibstick Jr
Availability:In stock
Cat No.
35352
SKU
VZCPM-K5
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£5,784.00
£4,820.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

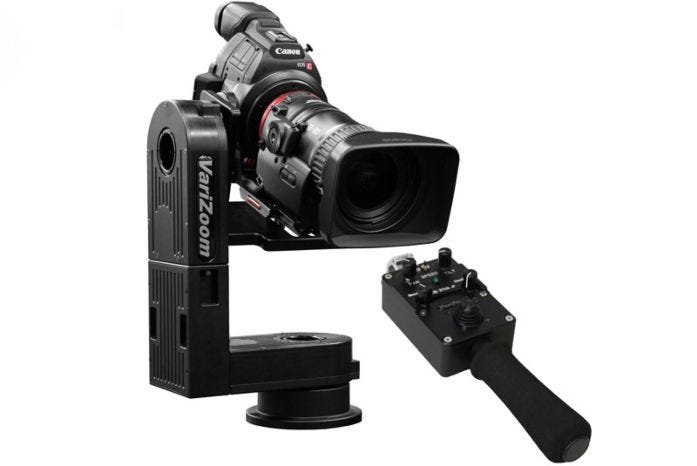

VariZoom VZCPM-K5 CP Micro with Jibstick Jr
Using the same control system as our acclaimed CP and CP JR heads, the CP Micro offers the same frame-accurate, fully enclosed drivetrain, high-performance design at a much more affordable price and in a much smaller and lighter package.
Ideal for Canon C100 & C300, Sony FS5, Sony A7RII, RED Raven, DSLRs, and any other compact cameras under 12lbs, the CP Micro sacrifices nothing in quality but is tailored to meet the needs of shooters requiring a smaller and lighter package.
The CP Micro works with all of the existing CinemaPro control devices, including pan bars, hand wheels, advanced console, new “River” multi-head 28-axis console, Jibstick Pro, and Jibstick JR.
Key Features
- Dynamic speed control from an imperceptible creep up to 80 degrees/second
- Maintenance-free, high-power drivetrain holds camera position
- Cable pass-thru ports on pan and tilt rotators
- Native frame-accurate motion control capability (repeatability depends on controller)
- Independent speed and direction controls
- Smoothing adjustment
- Thumb joystick
- Easily adjustable single-lock camera platform
- User choice of Mitchell mount or 100mm ball mount at no charge
- Flexible mounting base allows field change of mount type with no special tools
- Lemo connectors for power and control
- AC power supply with 25′ cable
- 25′ control cable
- Hard carrying case
- 2 year warranty
- Dynamic speed control from an imperceptible creep up to 80 degrees/second
- Maintenance-free, high-power drivetrain holds camera position
- Cable pass-thru ports on pan and tilt rotators
- Native frame-accurate motion control capability (repeatability depends on controller)
- Independent speed and direction controls
| Weight | 35 lbs |
|---|---|
| Dimensions | 26 x 20 x 9 in |
| UPC | 877038007352 |
| Height | 13" |
| Width | 4" |
| Depth | 8" |
| Weight | 7 lbs |
| Camera Clearance | Vertical – Camera pointing straight down/up: 7" from center of cam plate to base. Horizontal – Camera pointing level horizon, underslung: 8.25" min / 10.5" max. With 3" head extension: Vertical 10", Horizontal 11.25" min / 13.5" max |
| Max Cable Extension | 300 feet, longer with optional power booster |
| Camera Weight | 12 lbs |
| Pan/Tilt Speed | 80 degrees/second (limited for optimal performance) |
| Mechanical travel | Limited only by cable twist |
| Power Requirements | 24VDC regulated, 4A max |
| Warranty | 2 years |
| Returns | 20% restocking fee within 30 days of purchase |
