Steadicam Steadimate-RS Gimbal, Base, and Balance Stud
Availability:In stock
Cat No.
50798
SKU
SDMRS-GIM
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£400.80
£334.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

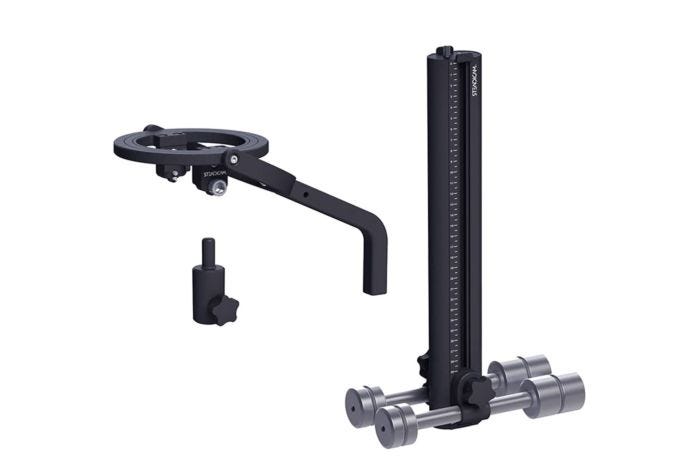

Steadicam Steadimate-RS Gimbal, Base, and Balance Stud
The new Steadimate-RS greatly improves the functionality and user experience of operating the DJI Ronin RS2, RS3, and RS3 Pro motorized gimbal stabilizers.
Users will experience enhanced camera stabilization by combining the comfort and fluid movement of a Steadicam body worn stabilizer with the simple operation of the DJI handheld motorized gimbals.
The Steadimate-RS greatly reduces the load carried by the operator by utilizing a A15 or A30 (15lbs/6.8kg. or 30lbs/13.6kg weight limit respectively) spring arm to transfer the weight to the hips.
Operators can now operate the DJI Ronin RS2, RS3, and RS3 Pro for extended periods with minimal fatigue while maintaining a full range of motion.
The mechanical gimbal yoke with integrated pan bearing of the Steadimate-RS delivers full pan capability and provides x & y-axis stabilization while the arm provides z-axis stabilization.
Combined, this 3-axis manual stabilization enhances the capability of the motorized stabilizing system to minimize the image bouncing effect often found when walking with a handheld motorized stabilizer.
Key Features:
- Secure slip-free dovetail mounting onto DJI Ronin RS2/RS3/RS3 Pro
- Ultra-smooth unique pan bearing design
- ¼-20” mounting holes on the gimbal handle for accessory mounting
- Unique vertical “T-Slot” channels for fast weight balance adjustment
- Industry standard 15mm diameter stainless steel weight rods with 60mm spacing
- Industry standard ½” diameter arm mounting post
- No-tool removal of gimbal from DJI stabilizer
- No tool adjustable balance weights and rods
- Made from corrosion resistant stainless-steel hardware and anodized aluminum components
- Stainless steel 1/2lb and 1/4lb balance weights with ¼-20 male and female threads
- Secure slip-free dovetail mounting onto DJI Ronin RS2/RS3/RS3 Pro
- Ultra-smooth unique pan bearing design
- ¼-20” mounting holes on the gimbal handle for accessory mounting
- Unique vertical “T-Slot” channels for fast weight balance adjustment
- Industry standard 15mm diameter stainless steel weight rods with 60mm spacing
- Industry standard ½” diameter arm mounting post
- No-tool removal of gimbal from DJI stabilizer
- STEADIMATE-RS Gimbal Attachment
- Aluminum Post Extension
- (2) Aluminum Rod Clamps
- (2) 15mm Stainless Steel Weighted Rods
- (4) 1/2 lb. (0.22 kg) Stainless Steel Balance Weights
- (4) 1/4 lb. (.011 kg) Stainless Steel Balance Weights
- Balance Stud
- 3mm Allen Wrench
- 3/16” Allen Wrench
