Product Information

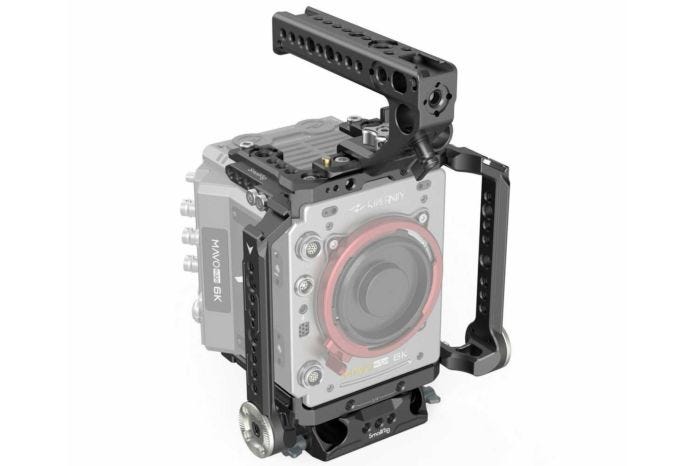

SmallRig Camera Cage Kit for Kinefinity MAVO Edge 6K/8K 3897

SmallRig Camera Cage Kit for Kinefinity MAVO Edge 6K/8K 3897 is designed to provide accessory mounts and protect camera. The cage comprises a top plate and a bottom plate, securing camera via four and three 1/4"-20 screws respectively, and NATO rail on both sides connecting them via two 1/4"-20 screws. It gives full access to buttons, SSD slots, and ports cooling vents.

The top plate features ten 1/4"-20 threaded holes and three ARRI 3/8"-16 locating hole on top; as well as six 1/4"-20 threaded holes on each side for Magic Arm 2070 or NATO rail. The kit comes with Rod Clamp (with NATO rail) 3011 and Top Handle HTN2439 for mini Follow Focus 3010, Monitor Mount BSE2346 .

Each NATO rail includes six 1/4"-20 threaded holes, one 3/8"-16 threaded hole and one ARRI 3/8"-16 locating hole for Side Handle 3260 and HSN2093; an ARRI rosette for Side Handle 1891 and 1941; and two cold shoes for microphone.

The baseplate features two 1/4"-20 threaded holes on each side for attaching side NATO rail; two 3/8"-16 threaded holes and five 1/4"-20 threaded holes at the bottom. It can work with LWS Baseplate with Dual 15mm Rod Clamp to allow standard lens distance of 85mm, and with quick release plate for DJI RS 2 stabilizer to realize quick switch among handheld, tripod, and gimbals shooting. Besides, an accessible magnetic Allen Wrench is included for easy assembly and disassembly of accessories.

Key Features:

  • Provides protection and accessory mounts.
  • Maintains access to buttons, SSD slots, and ports.
  • Disassembled and assembled freely to meet different shooting demands.
  • 1/4"-20 threaded hole, ARRI 3/8"-16 locating hole, cold shoe mount, NATO rail, ARRI rosette for attaching handle, microphone, monitor, etc.
  • Easy operation and quick heat dissipation.

Designers: Film Horizon, illusion 929Lab

Compatibility: Kinefinity MAVO Edge 6K, Kinefinity MAVO Edge 8K

  • Provides protection and accessory mounts.
  • Maintains access to buttons, SSD slots, and ports.
  • Disassembled and assembled freely to meet different shooting demands.
  • 1/4"-20 threaded hole, ARRI 3/8"-16 locating hole, cold shoe mount, NATO rail, ARRI rosette for attaching handle, microphone, monitor, etc.
  • Easy operation and quick heat dissipation.
  • 1 x Cage
  • 1 x SmallRig NATO Top Handle HTN2439
  • 1 x SmallRig Rod Clamp (with NATO rail) 3011
  • 1 x SmallRig Universal LWS Baseplate with Dual 15mm Rod Clamp 3357
  • 15 x 1/4"-20 Screw
  • 1 x Allen Wrench
Product Dimensions242 x 170 x 153mm
Package Dimensions185 x 182 x 81 mm
Net Weight883g±5g
Package Weight1037g±5g
MaterialAluminum Alloy, Stainless Steel, Silicone
