Shape FS7LWTP Lightweight Plate and Top Plate
Availability:In stock
Cat No.
14957
SKU
SH-FS7LWTP
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£386.40
£322.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

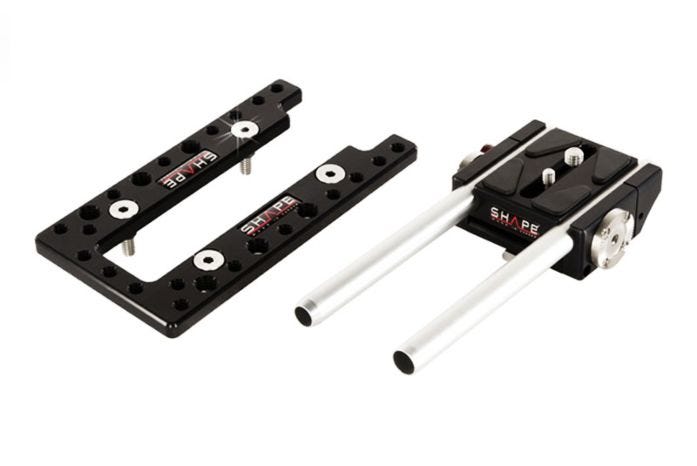

Shape FS7LWTP Lightweight Plate and Top Plate
A kit including the FS7LW & FS7TP
FS7LW Description
Machined from one block of aluminum, the FS7LW caters for users who require a small and solid 15mm rods solution.
The FS7LW offers all the features expected of a full-size baseplate in a small form factor. As well as providing 15mm rods for accessory mounting, it also adds a pair of Arri-style Hirth rosettes. The rosette's are not only compatible with the Sony SmartGrip, but can also be used to attach a second handle, such as the Shape HAND3, when extra stability is required.
Underneath is a 'delta' quick release wedge which is fully compatible with all standard 'VCT' tripod adaptor plates. The wedge can be removed to expose standard 1/4" and 3/8" threads for mounting on other tripod plates.
- CNC machined aluminum lightweight plate
- Designed to marry the SONY FS7 Shoulder Pad SHAPE
- Includes ARRI rosettes on each side to fit our HAND12 & SONY FS7’s right handle
- Includes a pair of 15 mm 8 inch rods
- Ratchet key knob to secure the rods
- Includes a bottom door to access the attaching screws
- Includes a delta plate to attach in PANASONIC quick release plate SHAN TM-700, SONY VCT14
FS7TP Description
The FS7TP is a simple solution for mounting accessories to the body of the FS7.
It works in conjunction with the cameras' original top handle, fitting snugly around the handle and allowing full operation of the handles' features.
The plate offers an array of 1/4" and 3/8" threads which can be used to attach options around the camera.
- Designed to be installed around the SONY FS7 top handle
- Includes 1/4-20 & 3/8-16 threaded holes for accessory attachment
Key Features:
- 15mm Rod Baseplate
- Top Plate with 1/4"-20 & 3/8"-16 Threads
- Maintains FS7's Shoulder-Mount Design
- ARRI Rosettes for Attaching Handles
- V-Lock Adapter Plate Included
- 1/4"-20 and 3/8"-16 Camera Screws
- 15mm Rod Pair (8")
- 15mm Rod Baseplate
- Top Plate with 1/4"-20 & 3/8"-16 Threads
- Maintains FS7's Shoulder-Mount Design
- ARRI Rosettes for Attaching Handles
- V-Lock Adapter Plate Included
- 1/4"-20 and 3/8"-16 Camera Screws
- 15mm Rod Pair (8")
Shape FS7LWTP Lightweight Plate and Top Plate
- Sony FS7 Lightweight Plate
- V-Lock Delta Adapter
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- 2 x 1/4"-20 x 3/8" Screws for Bottom Door
- 15mm Aluminum Rods (Pair, 8")
- Top Plate for Sony FS7 Camera
Sony FS7 Lightweight Plate
Camera Screw(s): 1/4"-20 and 3/8"-16
15mm Rod Length: 8" (20 cm)
