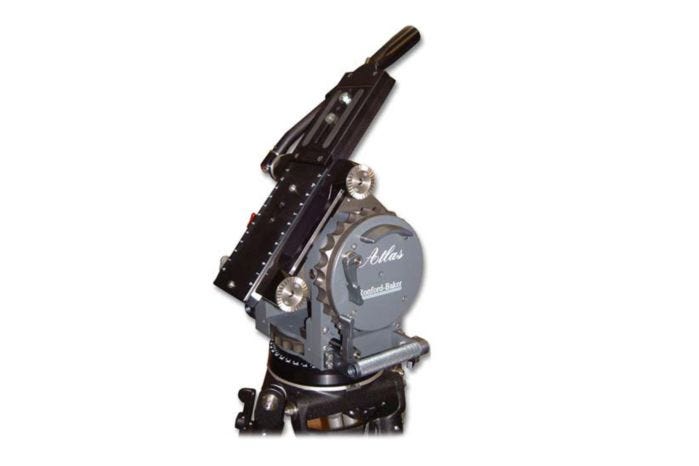

Ronford-Baker Atlas Balanced Fluid Head
Availability:In stock
Cat No.
23601
SKU
RF.50001
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£14,628.00
£12,190.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Ronford-Baker Atlas Balanced Fluid Head
The “Atlas” is a completely new design head,with a patented counterbalance system.
Capable of taking camera‘s up to 50 Kgs (110 lbs) @ 30 cm (12“) above the heads pivotal centre.
Operated by a single control knob, from 0 – 100 %. Incorporating the well proven Ronford-Baker fluid system, with 15 stages of fluid control, on pan & tilt. With a zero (free) position. These give unprecedented smoothness & accuracy of control & balance under all situations.
- Engineered for quality, strength & durability
- Quick release camera plate. Adjustable for balance with built in safety stops & scale.
- Arri dovetail plate also available.
- Panbars in 3 positions, mounted via ratchet discs with telescopic facility.
- Smooth positive braking on pan & tilt.
- 2 Spirit levels with “Tritium” light source.
- 150 m/m ball or Mitchell / Moy fitting.
- Tilt 180 Degrees
- Adjustable 360 Deg. pan scale.
- Front box mount.
- Eyepiece levelling bracket incorporated in carrying handles.
Key Features:
- Front box mount
- 180 Degrees Tilt
- Smooth positive braking
- Engineered for quality & strength
- Durable construction
- 150mm Ball or Mitchell fitting
- Easy to attach and use
- Front box mount
- 180 Degrees Tilt
- Smooth positive braking
- Engineered for quality & strength
- Durable construction
- 150mm Ball or Mitchell fitting
- Easy to attach and use
- Ronford-Baker Atlas Balanced Fluid Head
Weight: 13 Kgs / 28.5 lbs.
Height: 254 m/m (10“)
Width: 267 m/m (10.5“)
Depth: 203 m/m (10“)
Maximum load: 50 Kgs (110 lbs) @ 30 cm (12“) above pivotal centre.
Operational temperature: +150 Deg. F to - 40 Deg.
