Ronford-Baker Atlas 7 Fluid Head and 3rd Axis Kit

Availability:In stock
Cat No.
43256
SKU
RF.71200
Ronford-Baker

Not in stock - Usually delivered in 10-14 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£32,598.00 £27,165.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

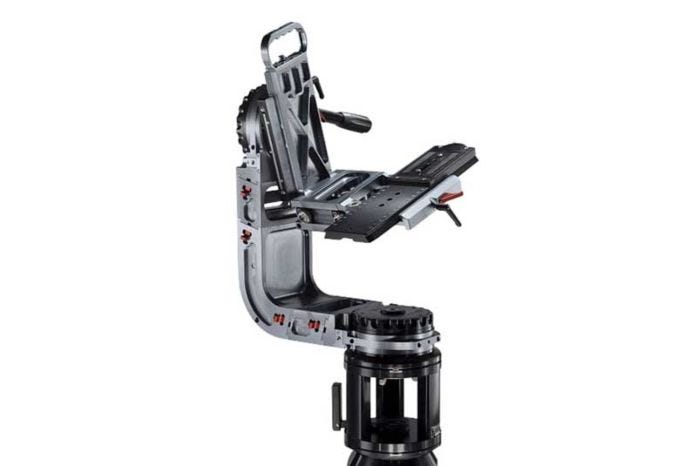

Atlas 7 Fluid Head and 3rd Axis Kit

The Ronford-Baker Atlas 7 is a completely new patented design fluid head. Incorporating a strong, rigid design with minimum platform flex, together with the well proven Ronford-Baker fluid system.

Features:

  • Modular construction featuring, identical fluid units for pan, tilt, 3rd & 4th axis.
  • Full 2-3 axes setup in minutes.
  • The fluid units have 15 variations of fluid control, plus zero (fluid free) positions at both ends of the scale.
  • All fluid units are capable of 360º rotation.
  • Joining these units together is simplicity it’s self. Twin tapered dovetails & a simple thumb screw fixing, allows tool free construction.
  • The Atlas 7 can be widened or raised via quick change blocks at 4cm, 8cm and 16cm wide, offering a quick and rigid interface.
  • Smooth positive braking.
  • Camera is mounted via sliding plates of different lengths & styles, including Arri Dovetail, Panavision or Quick Release types.
  • The Platform is vertically balanced by a quick adjusting ratchet mount, with fine tune nodal adjuster.
  • Panbar mounting thru the fluid units centre spindle, with various ratchet mounting. Numerous panbar options.
  • Mitchell base as standard with 150 m/m ball option.
  • 2 Spirit levels, 1 in the pan & 1 in the platform.
  • Environmentally sealed.
  • Fully guaranteed.

Atlas 7 3rd Axis Mode
3rd Axis Nodal Setup The camera can revolve on the lens axis.
The Nodal Point can be found by attaching the camera without the lens by using a pointer in its place.

Counterbalance weights can be fitted on both 3rd Axis and Tilt, at the top and bottom of the adjuster plates.

  • Modular construction featuring, identical fluid units for pan, tilt, 3rd & 4th axis
  • Full 2-3 axes setup in minutes
  • The fluid units have 15 variations of fluid control, plus zero (fluid free) positions at both ends of the scale
  • All fluid units are capable of 360º rotation
  • 1 x Ronford Baker RF.71200 Atlas 7 Fluid Head with 3rd Axis Mode
Weight ( 2 axis ) 14.5 Kgs.
Height 40 cm / 15 ¾”
Width 27 cm / 10 ½”
Depth 18 cm / 7”
Maximum load 55 Kgs
Operating temperature + 150º F to -40ºF (66ºC to -40ºC)
