Ronford-Baker Atlas 50 Fluid Head

Availability:In stock
Cat No.
38881
SKU
RF.53050
Ronford-Baker

Not in stock - Usually delivered in 10-14 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£11,784.00 £9,820.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

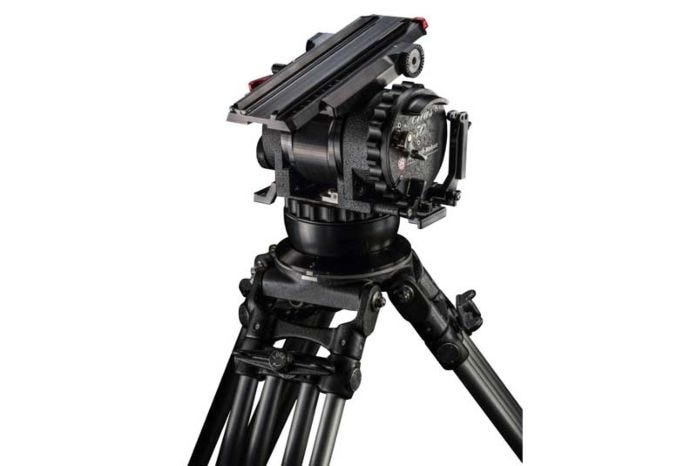

Atlas 50 Fluid Head

New Atlas 50 Fluid Head for Alexa, RED Epics and Sony F55 …etc.

On the Atlas 50 model, the Fluid/Drag power of the head has been increased by 50% compared to the Atlas 40 model. This results in the lowest fluid/drag power setting on the Atlas 50 (position 1) being an equivalent to the fluid/drag power setting on the Atlas 40 as 3.

Features:

  • Tilt range + & – 90 degrees
  • Pan range 360 degrees continuous Pan bar mounts.
  • Two on ratchet discs
  • Lifting handles integrated
  • Head bases 150 m/m or Mitchell (adaptor)
  • Stand off protection on both sides of the head
  • Sand proof sealed
  • Short plate has 7” / 18 cm movement. The Long plate has 13” / 33 cm movement
  • Fluid system, 7 steps pan & tilt with zero positions at either end of the scale
  • Counterbalance can also go into “Free” position
  • Spirit level with Tritium light source
  • Adjustable Eyepiece levelling bracket
  • Smooth positive braking on pan & tilt
  • Tilt range + & – 90 degrees
  • Pan range 360 degrees continuous Pan bar mounts.
  • Two on ratchet discs
  • Lifting handles integrated
Weight 10.50 Kgs
Height 265 mm / 10 ½”
From the Tripod Bowl 215 mm / 8 /12”
With Mitchel Fitting 250 mm / 10”
Width 250 mm / 10”
Depth 175 mm / 7”
