OConnor Ultimate 2560 Fluid Head Tripod System

Availability:In stock
Cat No.
21183
SKU
C2560-60L150-M
OConnor

Order Now - Usually available to despatch in 5-7 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£15,594.00 £12,995.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

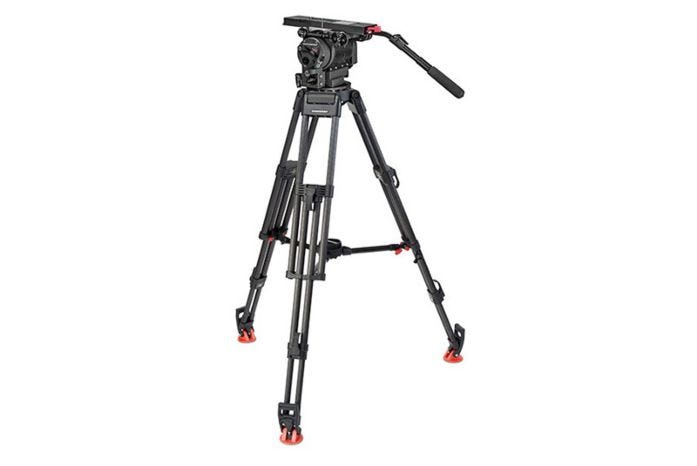

OConnor Ultimate 2560 Fluid Head & 60L 150mm Bowl Tripod with Mid-Level Spreader

The Ultimate 2560 Fluid Head & 60L Tripod from OConnor includes the Ultimate 2560 fluid head package, 60L two-stage tripod system with a Mitchell top plate and a floor spreader.

The fluid head is capable of supporting camera payloads up to 29kg at a 6" center of gravity above the platform, and offers a ± 90° tilt range. The fluid head package comes with a 12" pan handle with 30° bend and 11.5" pan handle extension. It also comes packaged with both a Mitchell base and 150mm ball base with tie-downs for expanded tripod compatibility.

Ultimate 2560 Fluid Head Package

The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 66 pounds at a 6" center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor's patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.

Key Features

  • Supports up to 94kg at 6" center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 8kg
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Stepless pan and tilt fluid drag
  • Mitchell base and 150mm ball base adapter with tiedowns
  • Euro-style quick release
  • Pan handle with pan handle extension

60L Carbon Fiber Tripod System with 150 mm Bowl

The OConnor 60L Carbon Fiber Tripod System with 150 mm Bowl supports tripod heads that have a 150 mm leveling ball. The legs feature 2-stages and weigh only 9 pounds, however they can support 209 pounds and extend from a minimum height of 22.8" to a maximum height of 60.6" when using the included mid level spreader.

The mid level spreader and individually adjustable legs allow you to set up a stable position on rocky, uneven terrain and even on stairs. The mid level spreader avoids the stresses and instability that a ground spreader can cause when working on uneven surfaces. When working situations require it, the spreader can be detached individually from each leg and the dual spikes at the end of each leg provide a solid anchor point when working on soft ground. The removable rubber feet snap onto the dual spikes for working inside or on slippery surfaces.

The system also features OConnor's smart quick clamping system that provides a visible clamp lockdown so you know your legs are secure. A small accessory hook under the 150 mm bowl allows you to hang various available tools and items such as a small set bag or foam rubber pad for shouldering the legs during camera position changes.

  • Supports up to 94kg at 6" center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 8kg
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Ultimate 2560 Fluid Head (C1260-0001)
  • Large European Quick Release with 120mm Plate (2575-120)
  • 12" Pan Handle with 30 degree bend (2575-137)
  • 11.5" Pan Handle Extension (2575-135)
  • Mitchell Base (08281)
  • Mitchell Base Tiedown (08402)
  • 150mm Ball Base Adapter (08278)
  • Tiedown (08417)
  • Limited 1-Year Warranty (Extendable to 2-Year with Product Registration)

60L Carbon Fiber Tripod System with 150 mm Bowl

  • Mid-Level Spreader
  • Rubber Feet (Set of 3)
  • Limited 1-Year Warranty, Extendable to 2-Years with On-line Product Registration
Ultimate 2560 Fluid Head Package
Load Capacity
  • 83 lb (37.7 kg) at 4" (10.2 cm) camera center of gravity above platform
  • 65 lb (29.5 kg) at 6" (15.2 cm) camera center of gravity above platform
  • 53 lb (24.1 kg) at 8" (20.3 cm) camera center of gravity above platform
Base Mitchell (with 150mm ball adapter)
Quick Release/Wedge Plate OConnor 2575-120
Tilt ±90°
Dimensions 8 x 11.3 x 7.5" (20.3 x 28.7 x 19.1 cm)
Weight 16.2 lb (7.3 kg)
60L Carbon Fiber Tripod System with 150 mm Bowl
Leg Stages/Sections 2 Stage
Height Range
  • Maximum: 60.6" (153.9 cm)
  • Minimum: 22.8" (57.9 cm)
Load Capacity 209 lb (95 kg)
Head Attachment Fitting 150 mm Ball Base
Material Legs
  • Carbon Fiber

Head Attachment Fitting

  • Aluminum
Leg Lock Type Smart Quick Clamping System - Lever Lock
Spreader Mid level, detachable
Independent Leg Spread Yes (when spreader is detached)
Spiked/Retractable Feet Dual spikes
Collapsed Height 29.9" (75.9 cm)
Weight Tripod only: 9.0 lb (4.1 kg)
