OConnor Ultimate 2560 Fluid Head

Availability:In stock
Cat No.
18601
SKU
C1260-0002
OConnor

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£11,994.00 £9,995.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

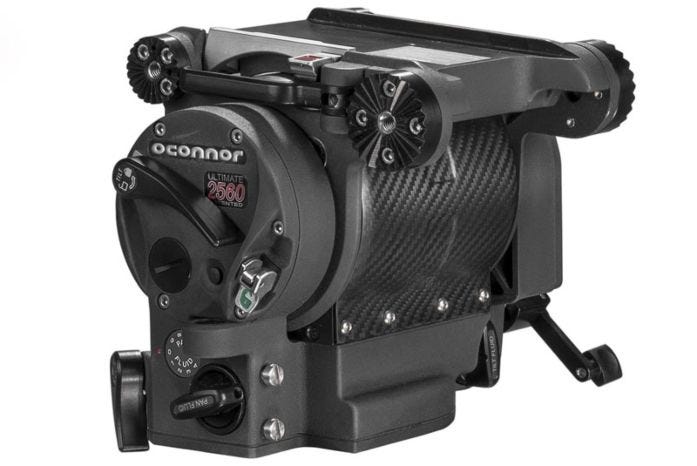

OConnor Ultimate 2560 Fluid Head

Continuously adjustable OConnor sinusoidal counterbalance and fluid drag that together give the ultra-smooth feel over the largest payload range
The Ultimate 2560 Fluid Head from OConnor is capable of supporting camera payloads up to 65 pounds at a 6" center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The flat base can be adapted with separately available 150mm ball base or Mitchell base, and it supports the separately available Euro-style quick-release for rapid mounting and dismounting of large camera rigs.


Key Features:

  • Supports up to 66 pounds at 6" center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 18 lb
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Stepless pan and tilt fluid drag
  • Supports up to 66 pounds at 6" center of gravity above the platform
  • Magnesium frame and carbon fiber cover keeps weight under 18 lb
  • Cinema standard positioning of controls, including brakes and rosettes
  • Sinusoidal counterbalance system
  • Stepless pan and tilt fluid drag
  • 1 x Ultimate 2560 Fluid Head - (C1260-0002)
Capacity @ 4 in. (102 mm): 83 lbs. (37.7 kg), @ 6 in. (152 mm): 65 lbs. (29.5 kg),@ 8 in. (203 mm): 53 lbs. (24.1 kg)
Tilt +/- 90 degrees tilt
Height 8 in. (20.3 cm)
Width 11.3 in. (28.7 cm)
Depth 7.5 in. (19.1 cm)
Weight 16.2 lb. (7.3 kg)
