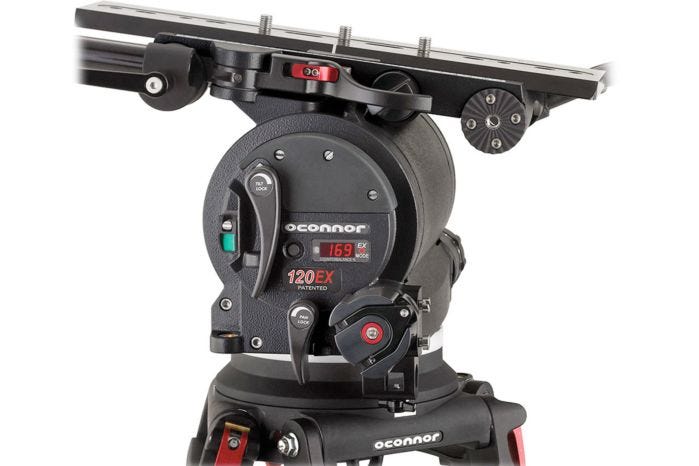

OConnor 120EX Fluid Head Package
Extended capacity 120EX Fluid Head for cameras up to 54.0 kg
OConnor's fluid heads are famous for ultimate control and stability for film style shooting. With the use of EX-technology OConnor can offer the features it has become famous for while offering an additional benefit: extended capacity. With a patented stepless counterbalance mechanism at the heart of EX-technology, the 120EX can be boosted into EX-mode to achieve a whole new realm of support.
The 120EX head has a given payload capacity of 120 lbs (54 kg) for the ±90° tilt range. With traditional counterbalance mechanisms any payload heavier than this maximum weight can’t be balanced.
EX fluid heads can go far beyond their maximum payload by slowly limiting tilt range as the payload is increased. The maximum payload is reached at a tilt range of ±60°, which for the 120EX is an incredible 240 lbs (109 kg) based on a 8” center of gravity.
Key Features:
- EX Mode Extended Capacity
- Counterbalance Crank Knob
- Adjustable Platform
- 120 lbs Capacity
- 240 lbs EX Capacity
- EX Mode Extended Capacity
- Counterbalance Crank Knob
- Adjustable Platform
- 120 lbs Capacity
- 240 lbs EX Capacity
- 1 x 120EX Fluid Head (Mitchell Only) - (C1225-0003)
- 1 x Pan handle for 2065, 2575 & 120EX ranges - (2575-137)
- 1 x Pan handle extension for 1030-246 & 2575-137 - (2575-135)
| Capacity |
@ 8 in. (203 mm) minimum: 30 lbs. (14 kg), @ 8 in. (203 mm) ± 90°: 120 lbs. (54 kg), @ 8 in. (203 mm) ± 80°: 147 lbs. (67 kg), @ 8 in. (203 mm) ± 70°: 188 lbs. (85 kg), @ 8 in. (203 mm) ± 60°: 240 lbs. (109 kg) |
| Handle(s) | 30° |
| Bases | Mitchell |
| Tilt | +90° / -90° |
| Height | 9.8 in. (24.8 cm) |
| Width | 13.5 in. (34.3 cm) |
| Depth | 10.5 in. (26.6 cm) |
| Weight | 34.1 lbs. (15.5 kg) |
