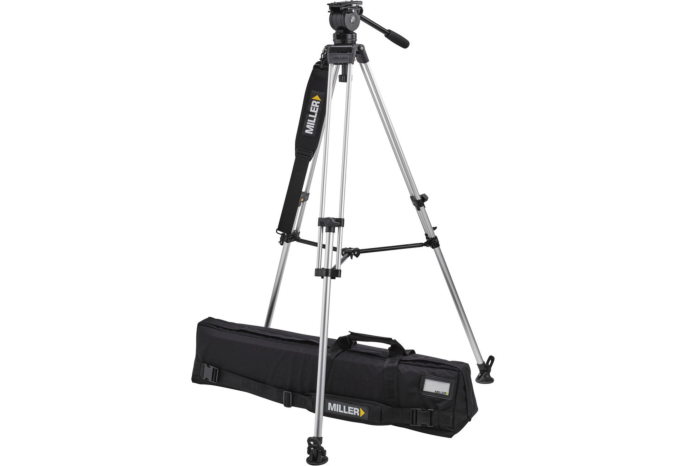

Miller MIL-3015 AIR Toggle LW Alloy System

AIR Toggle Lightweight Allow Tripod System from Miller

The Miller AIR Toggle LW Alloy System includes the AIR Fluid Head, DS Aluminum 1-Stage Lightweight Tripod Legs, Non-Adjustable Above-Ground Tripod Spreader, Rubber Feet for Select Tripods (set of three), and Soft Tripod Case for DS 1-Stage Systems.

The AIR Fluid Head is constructed of lightweight high-strength die cast alloy and rigid composite polymers, incorporating advanced precision fluid drag and two positions of counterbalance. It is capable of handling a wide range of payloads, from 4.4 to 11 lb. The DS Aluminum 1-Stage Lightweight Tripod is designed with single or two-stage legs, and made of aluminum alloy or carbon fiber material. It offers a 75 or 100mm bowl fixing, attached to a ball-leveling mount that ensures bowl-to-leg fastening, resists loosening, and eliminates joint instability. A Non-Adjustable Above-Ground Tripod Spreader is essential when shooting on uneven surfaces, such as steps, rocky ground, and slopes. It allows for rapid setups, and it pulls down by keeping tripod legs at an equal or preset distance relative to each other. The set of three Rubber Feet snap onto your tripod's spiked feet, providing stable, non-slip support. And the Soft Tripod Case is padded and designed for the Miller DS single stage tripod systems.

Air Fluid Head
The Air Fluid Head from Miller is constructed of light weight hi-strength die-cast alloy and rigid composite polymers, incorporating advanced precision fluid drag and two positions of counterbalance, with the ability to handle a wide range of payloads from 4.4 to 11 lb. The fluid drag system employs smooth start and soft stop technology, well balanced diagonal drag transitions and consistent drag resistance over temperatures ranging from -40 to 149°F.

Miller fluid head pan and tilt technology
Suitable for payloads between 4.4 to 11 lb
Built for rugged outdoor shooting conditions
Removable stud allowing head to be mounted on a solopod and slider via a 3/8" thread
Optional second pan handle mount

Compatibility

Solo Strap (1520), Solo 75 2-Stage Alloy Tripod (1630), Solo Dolly (394), Air Accessory Mounting Block (2092), Fixed Length Pan Handle for Air Fluid Heads (682)

DS Aluminum 1-Stage Tripod Legs (75mm Bowl)
DS Series tripods are designed with single or two-stage legs, and made of aluminum alloy or carbon fiber material. Offers a 75 or 100mm bowl fixing, attached to a ball-leveling mount that ensures bowl-to-leg fastening, resists loosening and eliminates joint instability. With unrivalled height range capability and toggle leg clamping system, these lightweight, compact tripods are quick and easy to set up and provide optimum torsional rigidity for stable shooting under any condition.

Aluminum alloy construction
75mm / 3" bowl base
Single extension design
Toggle clamping system
Maximum height of 52.0-inch
Supports up to 30 lb

835 Non-Adjustable Above-Ground Tripod Spreader
A Mid-Level Spreader is chosen when shooting is often performed on uneven surfaces, such as steps, rocky ground, slopes. It allows for rapid set-up and pull down by keeping tripod legs at an equal or preset distance relative to each other. Attaches to the center bracket of a tripod and folds down within tripod without having to take it off.

Speedy set-up for all lightweight tripods
Quick release attachment pins
Integrated in DS5 and DS10 systems with lightweight tripods

550 Rubber Feet Pads for Select Tripods (Set of 3)
The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.

874 Soft Tripod Case
The Miller 874 Soft Tripod Case is a padded tripod carry case designed for the Miller DS single stage tripod systems. It has rigid sidewalls sandwiched between high density foam padding and a head-end cradle to protect the tripod and fluid head from heavy bumps during flight and vehicle transport. It has a weatherproof Cordura construction with heavy duty zippers on the bag and the interior pocket. The case is carried by either the padded interlocking carry straps or the padded shoulder strap.

1000 denier water-resistant Cordura fabric
Rigid sidewalls sandwiched between high density EVA foam padding
Head-end cradle protects fluid head from heavy bumps during flight and vehicle transport
Padded interlocking carry straps and padded shoulder strap
1 Interior accessory pocket
Heavy duty zippers on bag and pocket
ID window

Compatible with;

Miller DS single stage system tripod

Key Features:

Lightweight, high-strength, die cast alloy
Versatile and affordable option
Advanced precision fluid drag
Padded tripod carry case
Set of three snap-on rubber feet
Supports upto 30lbs

Key Features

Lightweight, high-strength, die cast alloy
Versatile and affordable option
Advanced precision fluid drag
Padded tripod carry case

In the Box

Air Fluid Head
DS Aluminum 1-Stage Tripod Legs (75mm Bowl)
Carrying Strap
3-Year Parts and Labor Warranty
835 Non-Adjustable Above-Ground Tripod Spreader
550 Rubber Feet Pads for Select Tripods (Set of 3)
874 Soft Tripod Case
Padded shoulder strap

Specifications

Air Fluid Head
Camera Plate: Quick release, sliding camera plate
Mounting 75 mm with bubble level
Tilt Drag: Constant true fluid system
Tilt Range: +90° / -75°
Pan Drag: 3 selectable fluid drag + 0
Pan Range: 360°
Pan / Tilt Lock: Caliper disc brake system
Counter Balance System: 2 positions
Temperature Range: -40 to 149°F (-40 to 65°C)
Pan Handle: Fixed 390 mm
Payload Range: 4.4 to 11 lb (2 to 5 kg)
Payload Capacity: 11 lb (5 kg)
Height Above Bowl: 5.4" (137 mm)
Weight: 3.1 lb (1.4 kg)

DS Aluminum 1-Stage Tripod Legs (75mm Bowl)
Material: Aluminum
Load Capacity: 30 lb
Bowl Diameter/Thread: 75mm 3" Half Bowl
Minimum Height: 24.0"
Maximum Height: 52.0"
Leg Stages/Sections: 1/2
Leg Lock Type: Toggle
Center Brace/Mid-Level Spreader: No
Spiked/Retractable Feet: Spiked
Folded/Transport Length: 35.0"
Weight: 5.5 lb
Other: Spreader Required

835 Non-Adjustable Above-Ground Tripod Spreader
Construction: Aluminum
Type: Above-Ground
Adjustable: No
Minimum Length: 12.0"
Maximum Length: Not-Applicable
Weight: 0.6 lbs

550 Rubber Feet Pads for Select Tripods (Set of 3)
Dimensions: 2.7" (70 mm)
Weight: 8 oz (210 g)

874 Soft Tripod Case
Material: 1000 denier weather-resistant Cordura fabric
Type of Closure: Heavy duty zipper
Interior Dimensions: 41.1 x 7.1 x 7.1" (104.5 x 18 x 18 cm) (LxWxH)
Accommodates: Miller DS single stage tripod with accessories
Padded: Yes
Carrying/Transport Options:
