Miller DS20 Solo DV Carbon Fibre System (1514)
Availability:In stock
Cat No.
8280
SKU
MIL-1514
Product Information

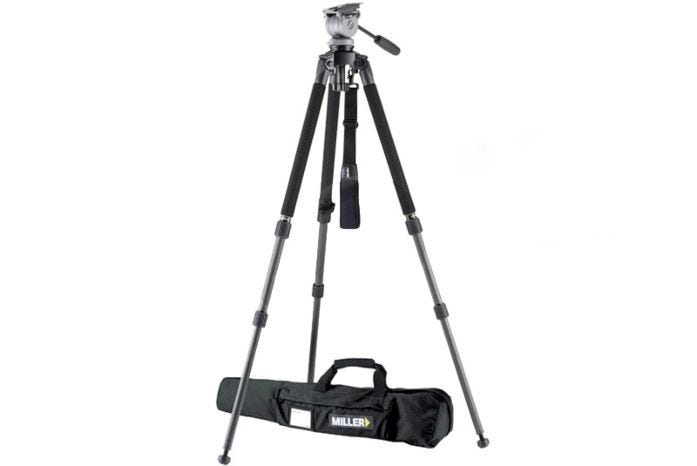

Miller DS20 Solo DV Carbon Fibre System (1514)
The DS20 Solo 75 system offers an ideal price to performance ratio and ultra-light carbon support for payloads between 5-10kg/11-22 lbs.
Designed around the popular Miller DS20 with 'flick-of-a-switch' selectable counterbalance, Solo 75 20 features a choice of 1/4" & pin or 1/4" & 3/8" screw mounts with sliding quick release mount for lens and battery changes. The Solo 75 2-Stage Carbon tripod complements this lightweight, true fluid drag support for all HDV/P2HD/XDCAM EX cameras.
Key Features
- True fluid pan and tilt fluid head
- 2 Stage Solo 75 carbon fibre telescope tubing
- 75mm ball levelling
- Quick Release sliding camera plate
- Flick-of-a-switch counterbalance positions for payloads from 5 to 10 kg / 11 to 22 lbs
- True fluid pan and tilt fluid head
- 2 Stage Solo 75 carbon fibre telescope tubing
- 75mm ball levelling
- Quick Release sliding camera plate
- DS20 Fluid Head (184)
- Solo 75 Softcase (1518)
- Solo Strap (1520)
- Fixed Length Pan Handle for DS5/DS10/DS20 Fluid Heads (681)
- Solo 75 2-Stage Carbon Fibre Tripod (1501)
| Material | Carbon Fibre |
|---|---|
| Construction | 2-Stage |
| Maximum Height | 1751 mm (68.9 in) |
| Minimum Height | 371 mm (14.6 in) |
| Mounting Standard | 75mm Ball Levelling |
| Payload Capacity | 10.00 kg (22 lbs) |
| Payload Range | 5-10kg |
| Transport Length | 831 mm (32.7 in) |
| Weight | 4.50 kg (9.9 lbs) |
