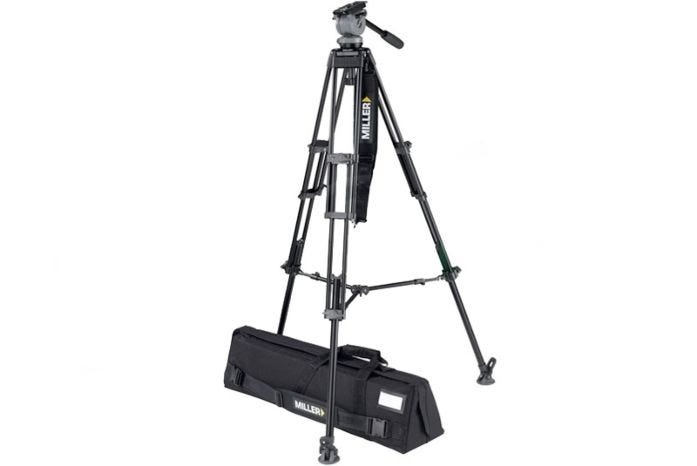

Miller DS20 2-Stage Alloy Tripod System (850)
Availability:In stock
Cat No.
8379
SKU
MIL-850
Product Information
Miller DS20 2-Stage Alloy Tripod System (850)
2-Stage height versatility plus above ground spreader in a stable support package gives DVCAM/ DVCPRO users cost-competitiveness with full broadcast performance.
Key Features
- Fluid Pan and Tilt head with 75mm ball levelling
- Above Ground Spreader
- Extra 5kg counterbalance for large and lens/battery DVCAM
- 2-Stage Alloy tripod w/toggle locks
- Sliding plate: 1/4" & 3/8" screws or 1/4" & pin
- Fluid Pan and Tilt head with 75mm ball levelling
- Above Ground Spreader
- Extra 5kg counterbalance for large and lens/battery DVCAM
- 2-Stage Alloy tripod w/toggle locks
- DS20 Fluid Head (184)
- Tripod Rubber Feet (550)
- Telescopic Above Ground Spreader (508)
- DS Softcase (876)
- Tripod Shoulder Strap (554)
- Fixed Length Pan Handle for DS5/DS10/DS20 Fluid Heads (681)
- Toggle DV 2-Stage (420)
| Material | Alloy/rubber |
|---|---|
| Construction | 2-Stage |
| Maximum Height | 1667 mm (65.6 in) |
| Minimum Height | 527 mm (20.7 in) |
| Mounting Standard | 75mm Ball Levelling |
| Payload Capacity | 10.00 kg (22 lbs) |
| Payload Range | 5-10kg |
| Transport Length | 827 mm (32.6 in) |
| Weight | 5.80 kg (12.8 lbs) |
