Miller DS-20 Fluid Head - 75mm Ball Base

Availability:In stock
Cat No.
21471
SKU
MIL-184
Miller

Order Now - Usually available to despatch in 5-7 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£750.00 £625.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

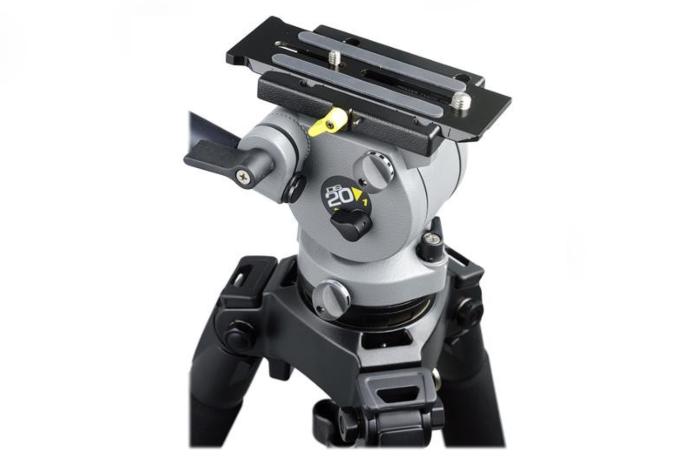

Miller DS-20 Fluid Head - 75mm Ball Base

The Miller DS-20 Fluid Head (75mm Ball Base) delivers the level of quality that is needed for professional ENG and corporate production.
Features a dynamic fluid drag system providing consistent control across all temperature ranges and through a wide range of settings. It also offers an integrated counterbalance system combined with a sliding balance plate for a wide tilt angle, as well as a quick release and automatic locking system, for quick setup and disengagement of your camera.

Multi-Step Pan & Tilt Fluid Drag System
The DS-20 fluid head incorporates Miller's Dynamic Fluid Drag system ensuring smooth, consistent fluid drag control across all temperature ranges and through a wide range of light and heavy settings. By being independent of payload weight, the dynamic system ensures smooth "starts" and dead "stops" for precise framing without any backlash. The system is fully sealed within sub-assemblies for a leak-proof, low maintenance life.

Preset Counterbalancing
The DS-20 uses a special designed counterbalanced system, to neutralize the effect of payloads and their centers of gravity. The built-in preset counterbalance system combined with a 60mm sliding camera platform optimizes tilt control in the intended capacity range. Allowing a +90/-70° angle tilt without worrying that the camera will topple.

Quick Release Camera Platform
Fitted with a precision, quick release camera platform that incorporates a sliding balance plate for fine tune payload balancing. The self-engaging action of the camera plate ensures rapid camera attachment in the field, while the built-in safety lock guarantees camera safety during setup and pull-down.

Safe at any temperature
Pressure or temperature does not influence the damping system; it has an operating range from -40°F to +149°F, and works without friction. Shoot wherever you want, from torrid heat to cold climates.

  • Built-in bubble for horizontal leveling
  • Load capacity of 22 lb

Key Features:

  • Supports Up to 22 lb
  • Dynamic Fluid Drag System
  • Disc Lock Pan/Tilt Braking System
  • Sliding Camera Plate
  • Selectable Counterbalance (2 Settings)
  • 75mm Ball Leveling with Bubble Level
  • Supports Up to 22 lb
  • Dynamic Fluid Drag System
  • Disc Lock Pan/Tilt Braking System
  • Sliding Camera Plate
  • Selectable Counterbalance (2 Settings)
  • 75mm Ball Leveling with Bubble Level

Miller DS-20 Fluid Head - 75mm Ball Base

  • 680 16mm Handle with Handle Carrier
  • 489 Camera Mounting Plate
  • 493 1/4"-20 and Location Pin Adaptor Carriage
Load Capacity 22 lb (10 kg)
Diameter/Thread 75mm (3") Half Ball
Counter Balance System Static counter balancing
Counter Balance Range 20 lb
Center of Gravity Not Specified
Quick Release/Wedge Plate Yes (Miller 489 Camera Mounting Plate)
Balance Plate Sliding, with 1/4"-20 and 3/8" Screws
Tilt Drag Variable Dial
Tilt Range +90/-70°
Tilt Lock Positive lock caliper brake system
Spring Loaded Counter Balance Variable Dial
Pan Range 360°
Pan Lock Positive lock caliper brake system
Levelling Bubble/Illuminated Yes, Non
Temperature Range -40° to +149° F (-40° to +65° C)
Weight 3.9 lb (1.75 kg)
