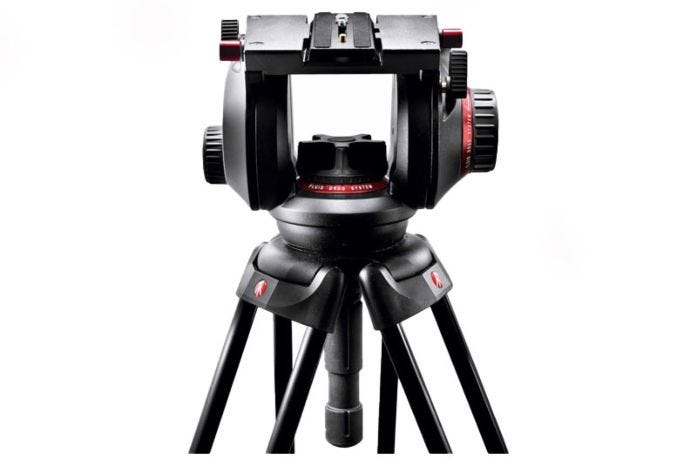

Manfrotto 509 Fluid Video Head with 100mm half ball
Availability:In stock
Cat No.
50921
SKU
509HD
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£916.80
£764.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Manfrotto 509 Fluid Video Head with 100mm half ball
A perfect balance of design and performance, the Manfrotto 509 fluid video head with incorporated 100mm half ball puts you in control. Stability, strength and speed to suit any condition.
The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement which allows smooth shooting, and a 4-step counterbalance system up to 12,8Kg at 55mm C.O.G or 8,5 kg at 125mm C.O.G. The head has a maximum payload of 13.5kg at 55mm C.O.G or 9Kg at 125mm C.O.G.
Easy link 3/8'' thread connections allow an external monitor or other accessory equipment to be fitted.
The 509 features the ABR (Advanced Balancing Recorder) for precision when fixing equipment, ensuring a perfect balancing position, saving time and making this operation much more efficient, accurate and fast.
Levelling is simple thanks to the 100mm diameter half ball and backlit levelling bubble.
- Variable Fluid Drag System on PAN and TILT for easy operation
- 4 step counterbalance system
- Sliding plate for fast camera connection and set up
- Inbuilt Ø100mm levelling half ball
- Illuminated levelling bubble for easy set up
| Weight | 3.9 kg |
| Counterbalance weight | 8.5 kg |
| Bubble spirit level(No.) | 1 |
| Safety Payload Weight | 13.5 kg |
| Certifications | WEEE; RoHS |
| Colour | Black |
| Front Tilt | -60° / +90° |
| Head Type | Video/Fluid Head |
| Minimum Working Temperature | -20 °C |
| Pan Drag | continuously adjustable from 0 to max level |
| Plate Type | 509PLONG |
| Tilt Drag | continuously adjustable from 0 to max level |
| Accessory Compatibility | 502HLV; 509HLV |
| Safety Payload UNI/PdR 105:2021 | 13.5 kg |
| Material | Aluminium |
| Center Of Gravity | 125 mm |
| Powered By (Batteries) | Lithium |
| Top Attachment | 1/4″ screw, 3/8″ screw |
| Easy Link | Yes |
| Ball Flat | 100 Ball |
| Maximum Working Temperature | 60 °C |
| Pan Bar Included | Yes |
| Panoramic Rotation | 360 ° |
| Quick Release | Yes |
| Working Height | 18 cm |
