The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.
The head attaches to the tripod via a dedicated 75mm half ball.

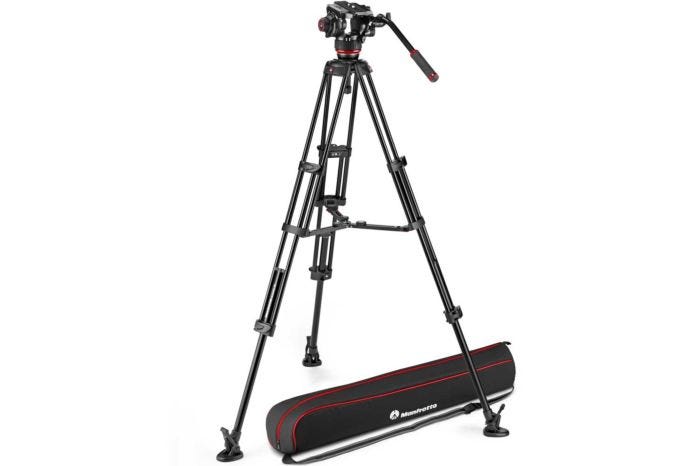

The MVTTWINMA aluminium twin leg with middle spreader video tripod is a professional-quality tripod with a two-stage, rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level video or films, then this is the must-have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.
The tripod has mid-level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the ground spreader Manfrotto 165MV which is sold separately.
Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).
Supplied with its own padded carrying bag.
Key Features -
Weight | 5.6 kg |
---|---|
Ball Flat | Flat |
Counterbalance System | Variable Steps |
Base Diameter | 75 mm |
Bubble Spirit Level (No.) |
1 |
Carrying Bag Included |
Yes |
Closed Length |
86 cm |
Easy Link |
Yes (with antirotation) |
Head Type |
Video/Fluid Head |
Leg Lock Type |
Flip Lock |
Maximum Height |
169 cm |
Min Height |
75 cm |
Pan Bar Included |
Yes |
Panoramic Rotation |
360 ° |
Quick Release | Yes |
Top Attachment | 1/4″ screw, 3/8″ screw |
Safety Payload Weight | 12 kg |
Powered by (batteries) | Lithium |
Counterbalance Weight | 2.2, 4.4, 6.5 kg |
Center of gravity | 55 mm |
Center Column |
no centre column |
Colour |
Black |
Front Tilt |
-70° / +90° |
Leg Type |
Twin |
Leg Lock Type |
Flip Lock |
Material |
Aluminium |
Maximum Working Temperature |
60 °C |
Minimum Working Temperature |
-30 °C |
Pan Drag |
continuously adjustable from 0 to max level |
Plate Type |
504PLONGR-1 |
Spreader |
mid level - variable arm length |
Accessory Compatibility |
114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL |
