Product Information
Libec REMO30 Remote Head for Handheld Cameras
Motorized Remote Head for Handheld Cameras from Libec
The Libec REMO30 Remote Head for Handheld Cameras remotely performs accurate camera operation via a unique motor power system that delivers that accuracy. By combining the power of pan and tilt motors, every pan, tilt and diagonal movement can be achieved at the speed ideal for the moment.
REMO30 is IPX2 splash-proof and can operate effectively outdoors even in extreme weather conditions. REMO30 is a universal head and is compatible with tripods and jib arms you may already own.
A Perfect Bird's Eye View
With the REMO30 mounted upside down, you can achieve a precise bird's eye view shot.
Flexible Mounting
Fully compatible with nearly all 75 and 100mm tripods and jib arms.
Accurate Camera Balancing
Ensures a perfect camera balance, preventing motor and drive stalling during tilt movements and instead, REMO30 offers smooth camera work at all times. A 3" sliding adapter plate aids back and forth balancing of the camera. For center of gravity positioning, fine tune adjustments can be achieved with the tilt arm at 90°.
Tangle-Free Cabling
Cable can be routed through the cable leads to prevent tangling.
All-in-One Cable Connections
Pan and tilt control, LANC, and monitor cables are combined in a single control cable. Pan and tilt head and control box can also be connected with this single cable by which a smart and simple cabling design is realized.
Variable Speed Control
Highly variable speed control can be achieved by operating the joystick and pan and tilt speed control dials.
Pan and Tilt Lock System
REMO30 is equipped with a lock system that can stop either pan or tilt motions. This enables you to focus on a single direction for an accurate operation.
Battery Powered Operations
An optional V-mount battery is attachable to the backside of the controller.
Various Cables and Adapters Included
A variety of cables and adapters are included to accommodate every shooting condition and camera type.
Key Features:
- Pan / Tilt Motor-Driven Accuracy
- Achieves Bird's Eye View Shots
- Works with 75 / 100mm tripods / Jib Arms
- Perfect Camera Balance Prevents Stalling
- Joystick / Pan / Tilt Speed Control
- Pan and Tilt Lock System
- V-Mount Battery Attachable to Backside
- Tangle-Free Cabling
- Pan / Tilt Motor-Driven Accuracy
- Achieves Bird's Eye View Shots
- Works with 75 / 100mm tripods / Jib Arms
- Perfect Camera Balance Prevents Stalling
- Joystick / Pan / Tilt Speed Control
- Pan and Tilt Lock System
- V-Mount Battery Attachable to Backside
- Tangle-Free Cabling

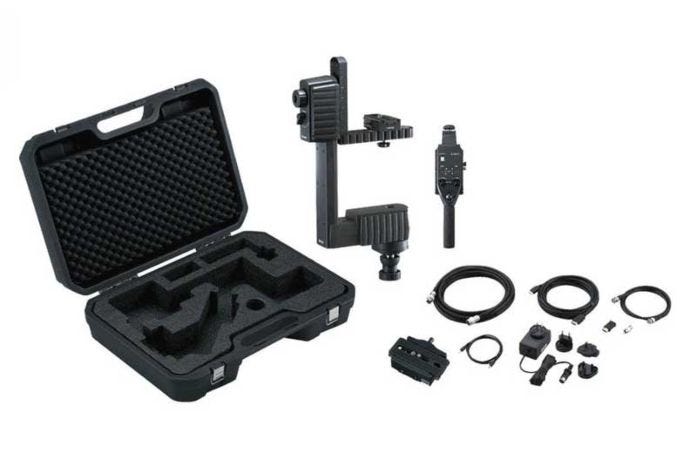

Libec REMO30 Remote Head for Handheld Cameras
- Pan and Tilt Head
- Control Box
- Adapter Plate
- AC / DC Adapter
- 16.4 ft Control Cable for Head LANC and Monitor
- 16.4 ft HDMI Cable
- 3.3 ft LANC Cable
- 3.3 ft BNC Cable
- BNC to RCA Adapter
- HDMI to Mini HDMI Adapter
- Carrying Case
| Head | |
| Payload | 11 lbs / 5 kg |
| Maximum Width | 9.8" / 25 cm |
| Positioning Range for Camera | 1) 3.15" / 8 cm (sliding range of sliding plate), 2) 2" / 5.2 cm (within the slot), 3) 4.52" / 11.5 cm (11 lbs / 5 kg weight; .59 - 5.1" / 1.5 to 13 cm center to tilt rotation), ) 1.37" / 3.5 cm (lens offset; .39 in - .98" out / 1 - 2.5 cm center to pan rotation) |
| Pan/Tilt Speed | Fast: 360° in 9 seconds, Slow: 360° in 51 seconds |
| Radius | Of tilt rotation: 1.38" / 3.4 cm, Of pan rotation: 11.8" / 30 cm |
| Tilt Drive | On / Off select of tilt drive lever |
| Interface | LANC connection, BNC connection |
| Control cable connection | Head Attachment For both .24 and .32" diameter / 7.5 and 10 cm diameter |
| Cable | Standard 16.4 ft / 5 m; max. 98.4 ft / 30 m of 6 connected cables |
| Camera Mounting Screw | 1/4"-20 (and 1x spare 1/4"-20 screw / 1x spare 3/8"-16 screw) |
| Power Supply | 100-240V AC / DC 12V |
| Operating Temperature | 14 to 104°F (-10 to 40°C) |
| Operating Humidity | Below 60% |
| Weight | 10 lbs / 4.5 kg including bowl clamp |
| Control Box | |
| Clamping Width | .049 - .09" in diameter (15 - 30 mm) |
| Direction Control | 3-position for pan and tilt (Forward, Reverse, Disable) |
| Speed Control | Changing pan and tilt dial |
| Joystick | Continuous control of speed and direction |
| Interface | AC / DC adapter connection, LANC connection, BNC connection, Control cable connection |
| Power | AC / DC adapter, V-mount battery |
| Weight | 1.5 lbs (.7 kg) |
