Hague K18-UPH CamCrane With Underslung Pan & Tilt Power Head

Availability:In stock
Cat No.
8917
SKU
K18-UPH
Hague

1 in stock for Immediate Dispatch

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£1,128.00 £940.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

Hague K18-UPH CamCrane With Underslung Pan & Tilt Power Hea

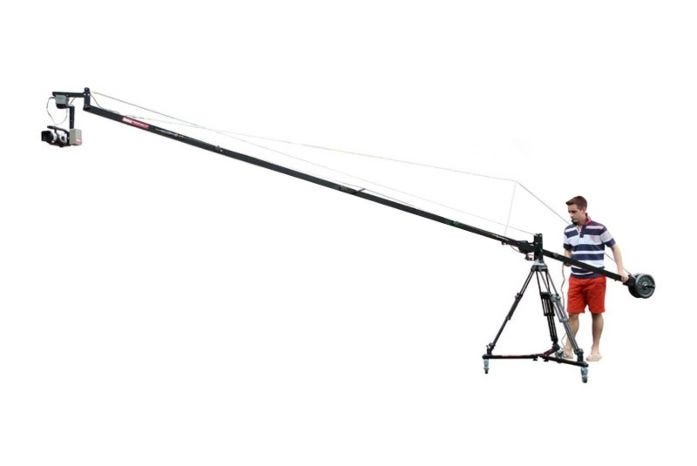

The Hague CamCrane K18 with UPH Underslung Pan & Tilt Power Head is quick and simple to set up, it attaches to any sturdy 100 or 75mm "bowl type" tripod or can be supplied with the optional Hague Dolly D3. It’s ideal for both handheld camcorders and DSLR cameras up to 2kg (4.4lbs) in weight.

Once balanced the camera can smoothly move from ground level to almost 7 metres high and the crane will pan 360 degrees. You have the choice of using the CamCrane at it’s full length or without two of the centre sections. At it's full length support cables are used to improve rigidity. The counterbalance arm has an adjustable fine trim weight and a weight bar with handgrips. Standard bar weights are used for counterbalance (not supplied). A supplied monitor bracket enables a LCD monitor to be fastened to the crane, making it easier to monitor your shots.

The electronic motorized Underslung Pan & Tilt Power Head is suitable for all handheld camcorders and DSLRs that weigh less than 2kg. The Power Head fastens to the crane with the supplied screws. The camera is mounted underslung with a tilt movement of 360 degrees, this enables the camera to point directly downwards when required. The head also pans 360 degrees on the end of the crane. The unit is battery operated with a wired remote control for both pan & tilt, it also has a variable speed control.

The K18 CamCrane is made of aluminium and breaks down into 5 main sections, making it easier to handle in transit. It is supplied in a cardboard carton but an optional transit case is also available.

Key Features:
Suitable for handheld camcorders & DSLR cameras
Supports up to 2kg (4.4lbs)
Quick & simple use
Just under 7m of vertical crane movement
Create smooth jib shots

  • For Handheld Camcorders & DSLR Cameras
  • Supports up to 2kg (4.4lbs)
  • Almost 7m of Vertical Crane Movement
  • Creates Smooth Jib Shots
K18 CamCrane Specs
Length from stand/tripod to camera 427cm at its longest length, or 210cm at its shortest length
Length from stand/tripod to weight bar 143cm
Total length 570cm or 350cm at its shortest length
Vertical crane movement from ground level to 695cm high (at its longest length) or 226cm (at its shortest length). The maximum vertical crane movement includes going down as well as up, so the crane would need to be on a raised area to achieve the full movement.
Colour Black
Transit Size 120 x 18 x 16 cm
Weight 17kg (37.5lbs)
UPH Remote Pan & Tilt Head Specs
Weight 1.7kg. (3.75lbs)
Dimensions 356x240x103mm (14x9.5x4 inches)
Head sockets 1 x 7 pin din, 1 x 6v DC in
Vertical Tilt & Horizontal Pan 360 Degrees
Approximate speed Pan & Tilt variable from 4 to 8 degrees per second. On/Off switch
Power Requirements AA Batteries x 4
Head construction Black ABS plastic and powder coated CNC machined aluminium
Maximum Camera Weight 2kg
UPH Hand Held Controller Specs
Dimensions L125 x W45 x H15mm
Control cable with 7 pin din plug
Speed Slider control
