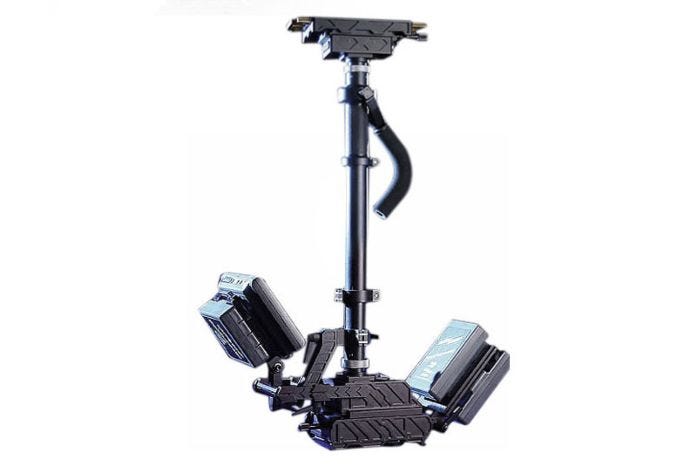

Glidecam Gold Sled - V-Lock Base

Sled with V-Lock Base that Supports up to 38.0 lb (17.2 kg)

The new Glidecam Gold Sled supports film or video cameras weighing from 13 to 38 pounds. The Gold Sled incorporates sophisticated engineering and precision machining to make it lightweight and strong. It is designed with the same look and aesthetics as the Glidecam Gold Arm and Vest, and is available with one of the various daylight viewable, LCD monitors. The black parts of the Glidecam Gold Sled are anodized black with a few parts hard coated black.

Head
The precision, x-y adjustable Head assembly utilizes low friction “Teflon” which is incorporated into its hard coat finish. The Head assembly’s back panel has a 3-pin “Lemo” 1B303 style with switchable 12/24 volt power, BNC video in, and a 2 pin “Lemo” 1B302 style with 12 volt out. The front panel has a 2-pin “Lemo” 1B302 style with 12 volt out, two 4-pin “Lemo”OB304 style with video/power out and one 4-pin “Lemo” OB304 video/power in connectors. The head also has a custom designed video distribution amp installed for clear video signals. The Head also incorporates a drop in style dovetail camera plate for quick front to back balance. Very, fine tuning, ergonomic knobs control front to back and side to side balance adjustments.

Gimbal
The Sled’s “no-tools” precision Gimbal is made to top of the line quality. The Gimbal incorporates 4 bearings inside the handle to yoke connection (the tilt axis). There are 2 bearings on each side of the yoke, providing 4 bearings for the roll axis. There are 2 central main bearings for the pan axis. This doubles the Gimbal’s thrust capacity and creates less than a .0002” deflection off true center. All Gimbal parts are machined within .0005” accuracy and are hard coat black. A very tight knurling has been machined onto the Gimbal Tube to improve handling. An easy to replace soft foam covers the handle grip.

Post
The Sled has a “no-tools” Telescoping Center Post. The top and bottom of the Post both have “no-tools”, 90-degree rotation, quick release connectors (bayonet style). This allows the Head and the Base of the Sled to be removed quickly. The custom, shielded, wire coil assembly inside the post has 8-pin “Lemo” style connectors on both ends for quick disconnect. The Center Post also incorporates an alignment pin as part of the “no-tools” clamp that controls the extension of the Telescoping Post. This pin keeps the upper and lower posts in alignment so the Head and Base of the Gold Sled are always parallel to each other.

V-Lock Style Base
The V-Lock Style Base for the Glidecam Gold Sled accepts all V-Lock brick batteries. These batteries deliver power to the base (for the monitor) and either 12 or 24 volts (switchable) to the head for use with video or film cameras.

• Incorporates sophisticated engineering and precision machining
• Lightweight and strong
• Precision, x-y adjustable Head assembly utilizes low friction “Teflon”
• Gimbal incorporates 4 bearings inside the handle to yoke connection

This product includes:

• 1 x Glidecam Gold Sled - V-Lock Base
