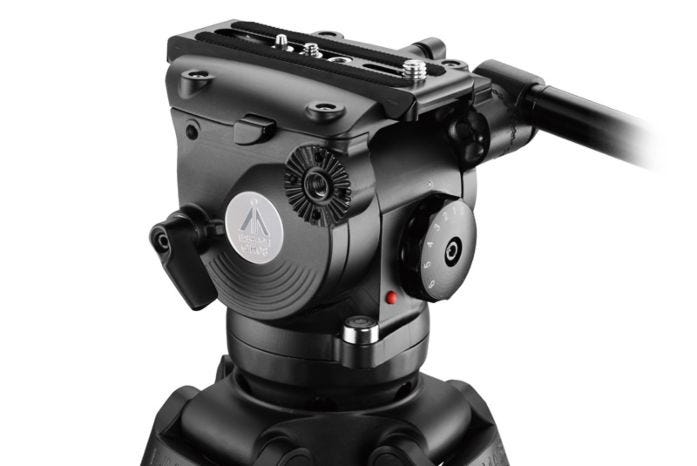

E-Image GH08 Fluid Video Head
The GH08 head is specially designed for supporting handheld size of DV, DVCAM, HVX and HDV camcorders.
It features a quick release sliding balance plate system for attaching the camera to the head. It provides 6 counterbalance settings plus a zero that helps the fluid head support loads up to 8kg (18 pounds). It features with fixed drag on both pan and tilt.
The head features a built in 1/4"-20 accessory socket for available monitor support arms or other accessory items.
It has self-illuminated Touch Bubbles for easy leveling in poor light conditions. With standard 75mm bowl, the heads could be equipped with all 100mm bowl size legs.
Key Features:
- Installed fluid on pan and tilt
- Illuminated levelling bubble
- Parking hole for hydrostatic arm with 1/4" or 3/8" threads
- Multi-adjustment counterbalance can reach perfect balance quickly and easily
- Installed fluid on pan and tilt
- Illuminated levelling bubble
- Parking hole for hydrostatic arm with 1/4" or 3/8" threads
This product includes:
- 1 x E-Image GH08 Fluid Video Head
| Payload Range | 2-8kg |
|---|---|
| Net Weight | 2kg |
| Counterbalance | 1-7 |
| Grades of Pan Drag | Fixed |
| Grades of Tilt Drag | Fixed |
| Tilt Range | -60°/+90° |
| Camera Plate | Sliding Plate |
| Slide Length | 83mm |
| Bowl Size | 75mm |
| Temperature Range | -40°/+80° |
| Pan Bar / Number | GB2/1pc |
| Bubble Level / Illuminated Bubble Level | Yes/Yes |
