Product Information

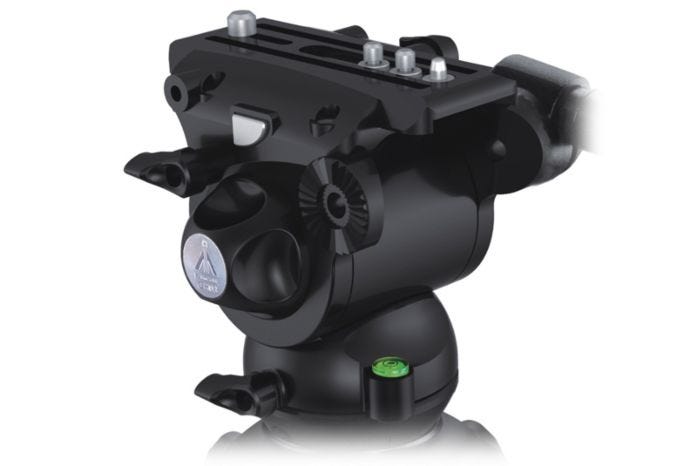

E-Image GH03 Tripod Head
The E-Image GH03 Fluid Head with 75mm Ball supports cameras and accessories weighing up to 11 pounds.
The GH03 head features an Easy Lock Baseplate system that combines the balance adjustment of a sliding baseplate with the ease of a quick release system.
It provides a fixed counterbalance settings that helps the fluid head support loads up to 11 pounds and won't force you to fight the head when working with lightweight camera systems.
- The Easy Lock baseplate provides the balance adjustment range associated with a sliding balance plate but combines the ease of a quick release, as you can pop the camera (on the Easy Lock plate) into the top of the fluid head without having to support the camera while lining up the plate with the head. Easy to pop in, it stays secure until you release it, and you maintain the sliding balance adjustments.
- The Easy Lock camera plate features a guided sled with a retractable locating pin and supports both 1/4"-20 and 3/8"-16 camera tie-down screws (included).
Key Features:
- Supports Up to 11 Pounds
- 75mm Ball
- Easy Lock Baseplate with Retractable Pin
- Fixed Counterbalance
- Variable Fluid Tilt & Fixed Pan Drag
- Bubble Level
- Dual Sided Pan Handle Rosettes
- 1/4"-20 Threaded Accessory Socket
- Supports Up to 11 Pounds
- 75mm Ball
- Easy Lock Baseplate with Retractable Pin
- Fixed Counterbalance
- Variable Fluid Tilt & Fixed Pan Drag
- Bubble Level
- Dual Sided Pan Handle Rosettes
- 1/4"-20 Threaded Accessory Socket
This product includes:
- E-Image GH03 Fluid Head with 75mm Ball
- Pan Handle
- Easy Lock Balance Plate
- Tie-Down Knuckle
| General | |
|---|---|
| Load Capacity | 11 lb (5 kg) |
| Leveling Bubble/Illuminated | Yes/No |
| Head | |
| Counter Balance System | Fixed |
| Quick Release/Wedge Plate | Easy Lock System |
| Balance Plate | Easy Lock |
| Tilt Range | -60 to 90° |
| Tilt Drag | Variable |
| Tilt Lock | Yes |
| Pan Drag | Fixed |
| Pan Lock | Yes |
| Temperature Range | -40 to 176°F (-40 to 80°C) |
