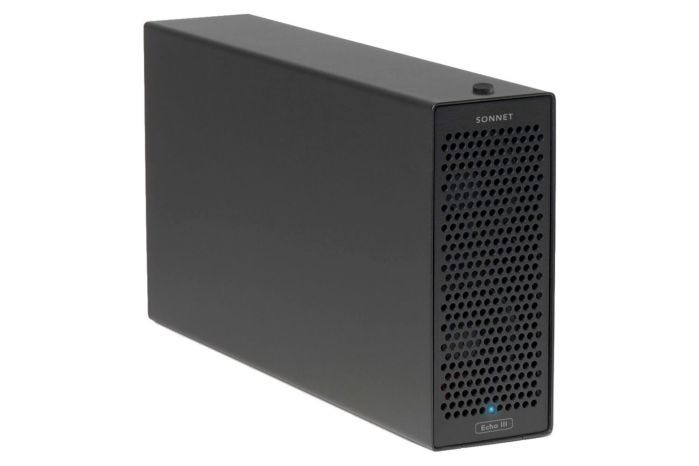

Sonnet 3-slot desktop Thunderbolt 3 to PCIe Card Expansion System
Availability:In stock
Cat No.
53969
SKU
SON-ECHO-3D-TB3
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,338.00
£1,115.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information
Sonnet 3-slot desktop Thunderbolt 3 to PCIe Card Expansion System
For creative pros using the latest portable, mini desktop and all-in-one computers in their workflows, onboard processing power alone is not enough to get the job done. While these computers include high-performance Thunderbolt™ 3 ports to support peripherals, what they lack is PCIe expansion slots to install specialty cards that add needed video and audio inputs, transcode data, and connect to high-speed shared storage and networks. Sonnet has a solution—the Echo™ III Desktop—a professional Thunderbolt™ 3 to PCIe card expansion system that enables you to connect three (up to) full-length (12.28 inches long) PCIe cards at the same time, via a single cable.
The Echo III Desktop features one x16 and two x8 PCIe 3.0 slots(1), enabling it to support a wide variety of cards at the same time. To support really power-hungry cards, it integrates a universal 400W power supply and includes a 75W auxiliary power connector for non-GPU cards that require extra power, including the Avid Pro Tools | HDX. Designed without a power switch, the Echo III powers on and off automatically with the connected computer, saving energy in the long run. With no power switch, you can’t forget to turn off the system!
Featuring dual Noctua fans, the Echo III Desktop is designed to deliver ultra-quiet operation so that it can be comfortably used in noise-sensitive environments. Rated at 17.1dBA—below the 20dBA ceiling prescribed for use in recording and broadcast studios—the fans spread the spectrum of their noise to minimize the impact at any single frequency. To further ensure negligible noise levels, the fans are temperature-controlled, automatically speeding up and slowing down smoothly as needed, and the enclosure is engineered to optimize airflow over the installed cards to effectively and efficiently cool the system.
Sonnet includes a 0.7-meter Thunderbolt 3 (40Gbps) cable that transfers data at Thunderbolt 3’s full 2750 MB/s PCIe bandwidth. In addition, Sonnet provides a ThunderLok 3 Thunderbolt connector retainer clip(2) that prevents accidental cable disconnections—just slide it over one end of the cable, and then plug in the connector and secure it to the chassis by turning a thumbscrew. Because of its unique design, ThunderLok remains on the cable so it won’t get lost when not in use.
- Sonnet Echo III Thunderbolt 3 to PCIe Card Desktop Expansion System
- Power Cable
- Thunderbolt 3 Cable
- ThunderLok 3 Thunderbolt Connector Retainer Clip
