Sonifex Dante 4 Mic/Line Input Commentator Unit

Availability:In stock
Cat No.
33551
SKU
AVN-CU4-DANTE
Sonifex

Order Now - Usually available to despatch in 7-10 days

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£4,934.40 £4,112.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

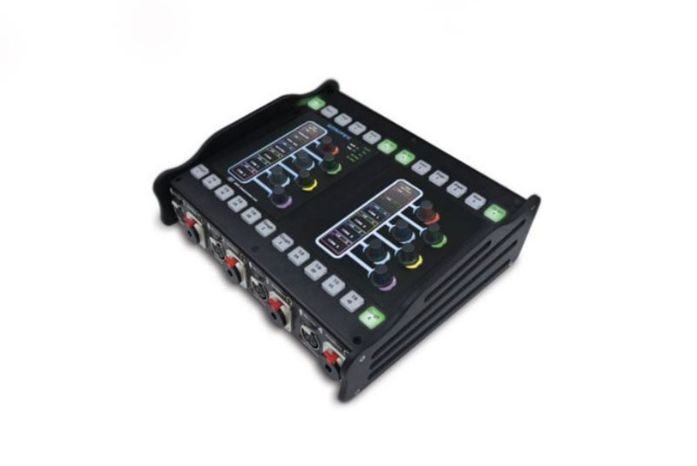

Sonifex Dante 4 Mic/Line Input Commentator Unit

The AVN-CU4 is a portable commentator unit using Dante® AoIP.

It is a dual version of the AVN-CU2 providing four mic/line inputs with a wide, adjustable gain range and four stereo headphone outputs with lockable jack sockets, suitable for operation by three or four commentators.

The feature set is as per the AVN-CU2, with the following differences. There are:

  • 4 x On-air buttons.
  • 4 x Page buttons, 2 for each half of the display.
  • 4 x Cough buttons.
  • 8 x Talkback buttons, up to 4 for each user and
  • 3 x User buttons.

As for the AVN-CU2, the illuminated ‘Sonifex’ logo acts as a power indication and illuminated LEDs indicate network clock status, AoIP Primary and AoIP. Secondary link status, PoE Primary, PoE Secondary and AC power active.

The front panel houses 4 x locking mic/line inputs with +48V phantom power indication and 4 x headphone outputs on locking 6.35mm jack sockets.

There’s an abundance of 4 wire connections on the rear panel: 4 x analogue line inputs on XLR sockets with latching locks, 6 x analogue line outputs on XLR plugs and an RJ45 AES3 stereo input & output.

The unit has dual redundant network ports on both RJ45 (PoE+ using 2 x Neutrik EtherCON® connectors) and SFP cages. There is an AC mains input on an IEC inlet, with a universal supply.

The 10 configurable GPIO and single switched changeover output use a 15 way D-type connector.

  • 4 x On-air buttons.
  • 4 x Page buttons, 2 for each half of the display.
  • 4 x Cough buttons.
  • 8 x Talkback buttons, up to 4 for each user and
  • 3 x User buttons.
