Slidekamera X SLIDER 1500 STD + Smart Brake
Availability:In stock
Cat No.
57194
SKU
MRMC-HSK-5-1500/AF-26/AF-31
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,650.00
£1,375.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

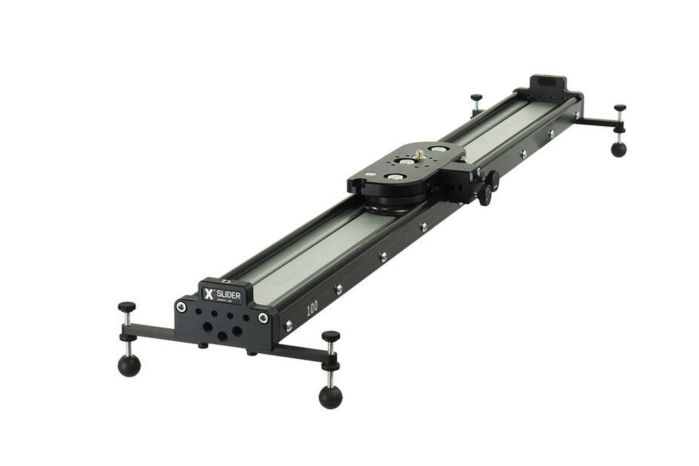

Slidekamera X SLIDER 1500 STD + Smart Brake
A perfect balance of portability and rigidity. Easy to use slider for rigs up to 20kg.
Thanks to a wide variety of custom options you can complete an ideal slider for your needs.
X-SLIDER is a great solution for building an entry-level motion control system.
X SLIDER
Available lengths: 800mm, 1000mm, 1500mm.
Number of mounting holes guarantee universality of our device and provide the user with great configuration possibilities.
Specially designed cart that moves along the rail carries the camera and leads it towards the object that is being filmed.
The cart was designed basing on high quality components. Three bearinged rollers move along a specially designed aluminium rail, which guarantees excellent smoothness and stability of motion.
SMART BRAKE X SLIDER
SMART BRAKE X SLIDER is equipped with 2 marked knobs. One of them is used to completely stop of the cart - PARKING BRAKE and second one is used to smooth change of the resistance movement of a cart - DAMPING.
SMART BRAKE is mounted in same way as normal parking brake (PARKING BRAKE for X SLIDER).
- Side feet with level adjustment (optional):
- BASIC side feet for X SLIDER
- STANDARD side feet for X SLIDER - Two or three AF-8 SH lower ports (mounting plates) with 3/8" and 1/4" threaded holes (number of ports depends on the model)
- Cart with 3/8" threaded hole
- AF-11 SL reduction 1/4"-3/8" mandrel
- AF-12 SL reduction 3/8" mandrel
- Standstill brake
- 5mm Allen key Z type
| Length of rail | X SLIDER 1500: 1500mm |
|---|---|
| Width of rail | 105mm |
| Height adjustment range of side feet | BASIC side feet: up to 40mm of STANDARD side feet: up to 120mm |
| Maximum width of side feet | BASIC side feet: 200mm STANDARD side feet: 400mm |
| Brake | PARKING BRAKE for X SLIDER SMART BRAKE for X SLIDER (optional) |
| Safety payload | 20kg |
| Amount of AF-8 lower ports | X SLIDER 1000 - two AF-8 SH lower port (mounting plates) with 3/8" and 1/4" threaded holes |
| Lower ports | AF-8 SH - lower port (mounting plate) with 3/8 "and 1/4" holes allows to mount the slider directly on a tripod or on a video head. |
| Cart mounting holes | 3/8" threaded hole, four M4 mounting holes, two 1/4'' holes |
| Bubble Level | One bubble level on slider cart |
| Material | Aluminium |
