Product Information

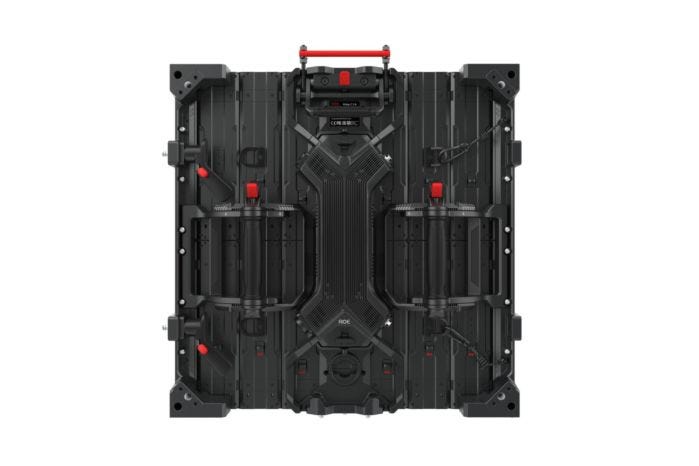

ROE Visual Ruby-C RB-C2.6
The highly-acclaimed Ruby Series LED panels are complemented with a completely compatible series of curving LED panels. The Ruby-C series is a line of smoothly curving LED panels, that look great in either flat or curved configurations.
The Ruby-C LED panel can be curved in both convex and concave curves. The panel can reach a maximum curving degree of 30-degrees, in a smooth, flawless curve, without flat sections. The precise positioning of the curving-degree allows for precise curving, up to a 1-degree curve.
Curve with ease and precision
The Ruby-C panels are equipped with easy multi-function handles. The handles are used for safe panel handling as well as setting the curve. Rotating the handles, you can lock the panel in the desired curving-degree. All in one go.
Impressive viewing performance
With its high-brightness LED, the Ruby-C panels give an excellent visual performance for both direct viewing and in-camera visuals.
Compatibility
The Ruby-C and Ruby panels are fully compatible. Combining both LED panels in one single wall, you can create stunning stage designs.
Easy maintenance
Offering both front- and rear module service, the Ruby-C panels are easy to service. The integrated PSU and Hub units make on-site servicing easy.
Corner protection
All Ruby LED panels have incorporated automatic edge-protection, which contributes to a drastic reduction in pixel damage. The magnet-assisted assembly and vertically operated side locks make assembly quick, accurate and safe.
Create Smooth and Perfect Curve
You can create smooth and perfect curved or flat displays using the Ruby-C LED panels. Various curve applications include cylinders with diameters less than 2 meters, archways, tunnels, or perfect wave
| Title | RB-C2.6 |
|---|---|
| Pixel Pitch | 2.604mm |
| LED Configuration | SMD 1515 Black |
| Max Brightness Calibrated | 1500nits |
| Panel Dimension | 500mm x 500mm x 108mm 19.7” x 19.7” x 4.25” |
| Panel Resolution (H x V) | 192 x 192 |
| Weight Per Panel | 8.3kg | 18.31lbs |
| Power Consumption Max/Average | 160W / 80W |
| BTU Max/Average | 545 / 250 |
| Transparency | Solid |
| Serviceability | Rear |
| Curving (Concave & Convex) | Concave 30° ~ Convex 30° |
| Viewing Angle Vertical | 140° |
| Viewing Angle Horizontal | 140° |
| Refresh Rate | 7680Hz |
| Gray Scale | 16bit |
| Scan Ratio | 1/12 |
| Operational Temp/Humidity | -20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH |
| Storage Temp/Humidity | -40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH |
| IP Rating | IP40 |
| Certifications | CE, ETL, FCC, UKCA |
| Max. Hanging | 20 panels |
| Max. Stacking | 12 panels |
