ROE Visual Diamond DM2.6
Availability:In stock
Cat No.
115784
SKU
ROE-Diamond-DM2.6
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

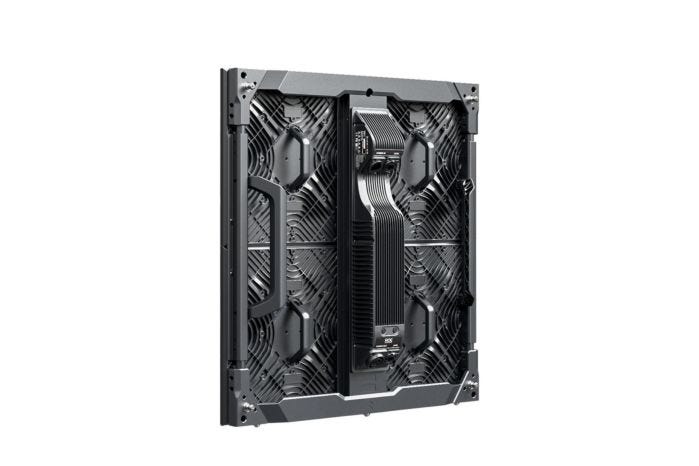

ROE Visual Diamond DM2.6
The Diamond LED series in a DM2.6 pixel pitch delivers an indoor LED solution with exceptionally vivid colors. The lightweight panels are easy to hang or stack and can be mounted in flat or curved configurations. This cost-effective LED display is suited for many applications, such as rental or xR Stages.
Lightweight LED Panel
Diamond LED panels measure 500 x 500 mm and weigh less than 5.5kg (12-lbs) per panel. The lightweight magnesium alloy frame ensures extreme durability.
Curving Capabilities
Flexible and easy to install in either concave or convex configurations, the Diamond LED panels encourage creativity in both stage design and fixed installations.
Superb Visuals
The black, small pixel pitch LEDs guarantee amazing contrast, brightness and deliver a high-definition and very vivid viewing experience.
Magnet-assisted Assembly
The Diamond LED panels have incorporated magnets in each panel, ensuring easy set-up for both stacking and hanging configurations.
- Lightweight Panel Design
- 90° Corner
- Pixel Pitch DM2.6 - 2.6mm
- Indoor Use
- Curved Configuration Possible
- Black LED for High Contrast and Brightness
- Saves Transport Volume
- Cost Efficient
| Title | DM2.6 |
|---|---|
| Pixel Pitch | 2.6mm |
| LED Configuration | SMD 1515 Black |
| Max Brightness Calibrated | 1500nits |
| Panel Dimension | 500mm x 500mm x 80mm 19.7” x 19.7” x 3.2” |
| Panel Resolution (H x V) | 192 x 192 |
| Weight Per Panel | 5.76kg | 12.7lbs |
| Power Consumption Max/Average | 180W / 90W |
| BTU Max/Average | 610 / 280 |
| Transparency | Solid |
| Curving (Concave & Convex) | Concave 10° ~ Convex 5° |
| Viewing Angle Vertical | 140° |
| Viewing Angle Horizontal | 140° |
| Refresh Rate | 3840Hz |
| Gray Scale | 14bit |
| Scan Ratio | 1/16 |
| Operational Temp/Humidity | -20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH |
| Storage Temp/Humidity | -40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH |
| IP Rating | IP40 |
| Certifications | CE, ETL, TÜV |
| Max. Hanging | 20 panels |
| Max. Stacking | 12 panels |
