ROE Visual Carbon Series CB3 Half
Availability:In stock
Cat No.
115706
SKU
ROE-Carbon-Series-CB3-Half
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

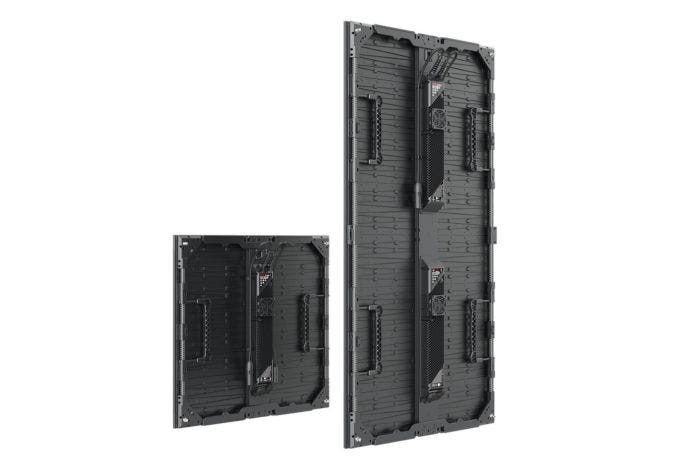

ROE Visual Carbon Series CB3 Half
Excellent brightness, high quality black or white LED and a low selfweight make the Carbon series LED panels the perfect solution for touring, sports or events applications, where large videowalls need to be built quickly. The series comprises of the CB8 (outdoor), CB5 (outdoor) and CB3 (indoor). Clever accessories, like hanging and stacking options, touring frames and transport dollies complete the Carbon series.
Lightweight
Measuring 600x1200mm, 23.6" x 47.2" the sleek Carbon family panels have a weight of only 13,9kg/30.6lbs per panel. With the slim panel design and great frame and dolly options, you can save costs on shipping and labor.
In and Outdoor
Comprised of bright, high-contrast LEDs, the CB5 and CB8 panels offer a perfect in and outdoor large format solution.
UVA (Uniform Viewing Angle) Technology
Comprised of bright, high-contrast LEDs, the CB5 and CB8 panels offer a perfect in and outdoor large format solution. UVA technology applies to special-designed modules when used as LED ceilings. UVA technology help LEDs get much better color performance, reduce the color deviation phenomenon, and improve uniformity as the lighting resource.
Air Frame
Air Frame is a lightweight touring system that is compatible with the Carbon family of product (CB5, CB8) panels. It provides a convenient all-in-one solution for hanging, stacking and transportation.
T Dolly
ROE’s innovative technology and use of carbon fiber frame design reduces pre-tour engineering time. Our lightweight Air Frame uses minimal trailer space, contributing to cost savings in shipping, truck load weight and air freight costs when compared to conventional touring frames.
Curving Capability
Concave and convex curving capabilities provide expanded flexibility to bring to life uniquely creative stage designs.
Half-panel Option
While the standard panel is 600mmx1200mm (w x h), we malso manufacture half-panels at 600mmx600mm for the ability to customize corners and edges.
Easy-to-build
Equipped with the integrated magnetassisted assembly, easy setup in both hanging or stacking configurations and great options for touring frames, the Carbon Family panels guarantee effortless and swift building of your LED screen
- Half Panel
- Curveable
- 90° Corner
- Hanging System
- Stacking System
- LED Ceiling
- Pixel Pitch
- Dummy Panel
| Title | CB3 Half |
|---|---|
| Pixel Pitch | 3.75mm |
| LED Configuration | SMD 2020 Black |
| Max Brightness Calibrated | 1500nits |
| Panel Dimension | 600mm x 600mm x 77mm 23.6” x 23.6” x 3” |
| Panel Resolution (H x V) | 160 x 160 |
| Weight Per Panel | 7.5kg | 15.87lbs |
| Power Consumption Max/Average | 260W / 130W |
| BTU Max/Average | 890 / 410 |
| Transparency | Solid |
| Serviceability | Rear |
| Curving (Concave & Convex) | Concave 15° ~ Convex 10° |
| Viewing Angle Vertical | 140° |
| Viewing Angle Horizontal | 140° |
| Refresh Rate | 3840Hz |
| Gray Scale | 14bit |
| Scan Ratio | 1/16 |
| Operational Temp/Humidity | -20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH |
| Storage Temp/Humidity | -40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH |
| IP Rating | IP40 |
| Certifications | CE, ETL, FCC |
| Max. Hanging | 24 panels |
| Max. Stacking | 10 panels |
