Product Information

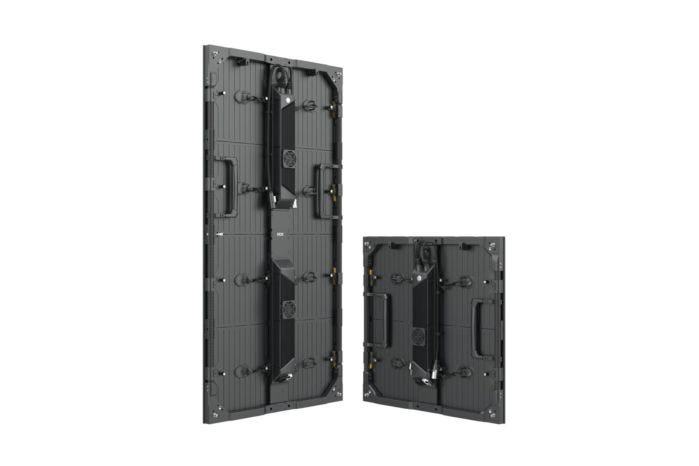

ROE Visual Carbon MarkII CB3MKII
Any better solution for outdoor rental stage? CB MarkII LED platform is the answer.
CB MarkII LED platform offers 12% weight reduction compared to CB series and designed on a stronger structure. User friendly designed, the CB Mark II panel is easier and faster to install and maintain, guaranteeing efficient servicing. It's an ideal outdoor solution that suitable for any flexible stage design.
Less weight, stronger structure
With a 12% weight reduction compared to the Carbon series, the CB5 MarkII offers a stronger structure, while reducing the weight. Measuring 600*1200mm, the panel weighs only 17kg/m2; Ideal for touring in combination with frame and dolly options. The reduced weight and easy handling will lower costs on transportation and labor.
Universal Module and Snap-Fit Mask
The CB MarkII panel is easier to install and maintain. The module and mask design guarantee efficient servicing. The modules can be exchanged on each position and the mask can be snapped on and off easily.
Magnet-Assisted Assembly
LED wall assembly now is much easier and labor-saving with the modified magnet-assisted assembly
All-In-One Solution
The CB MarkII panel offers improved integration, the frame now adapts to T4 and Air Frame. The CB MarkII Series panels can curve in both convex and concave directions. Its flexible design is suited for outdoor applications.
Improved heat dissipation
The new PSU box is designed to optimize heat dissipation. This results in a stable LED performance, specially in outdoor conditions when used on high brightness.
Half panel
The CB MarkII panels are available in two sizes, the standard 600 x 1200mm (w x h) panel and a half-panel measuring 600 x 600mm. CB MarkII also offers various solutions for corners and edges - ask for our options!
Build Your Ceiling With Ease
The Carbon MarkII offers special-designed modules when used as LED ceiling. Using the newly developed technology will result in much better color performance, ideal for film and studio applications.
- Light weight
- Curveable
- Touring frame compatible
- Fast installation
- Heat dissipation
- Half panel
- Hanging system
- Stacking system
- LED Ceiling
| Title | CB3MKⅡ |
|---|---|
| Pixel Pitch | 3.75mm |
| LED Configuration | SMD 1515 Black |
| Max Brightness Calibrated | 4500nits |
| Panel Dimension | 600mm x 1200mm x 79mm 23.6” x 47.2” x 3.1” |
| Panel Resolution (H x V) | 160 x 320 |
| Weight Per Panel | 14.4kg | 31.7lbs |
| Power Consumption Max/Average | 600W / 300W |
| BTU Max/Average | 2050 / 945 |
| Transparency | Solid |
| Serviceability | Front / Rear |
| Curving (Concave & Convex) | Concave 15° ~ Convex 10° |
| Viewing Angle Vertical | 110° |
| Viewing Angle Horizontal | 140° |
| Refresh Rate | 3840Hz |
| Gray Scale | 16bit |
| Scan Ratio | 1/10 |
| Operational Temp/Humidity | -20°C ~ 45°C, 10% ~ 90% RH -4°F ~ 113°F, 10% ~ 90% RH |
| Storage Temp/Humidity | -40°C ~ 60°C, 10% ~ 90% RH -40°F ~ 140°F, 10% ~ 90% RH |
| IP Rating | IP65 |
| Certifications | CE, ETL, FCC, UKCA, SAA |
| Max. Hanging | 12 panels |
| Max. Stacking | 5 panels |
