TVLogic R-5T 2G-SDI Supported 3 x 5.5’’ LCD Full HD Screen

Availability:In stock
Cat No.
38841
SKU
TVL-R-5T
TVlogic

Order Now - Usually available to despatch in 1-2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£4,627.20 £3,856.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

TVLogic R-5T 2G-SDI Supported 3 x 5.5’’ LCD Full HD Screen

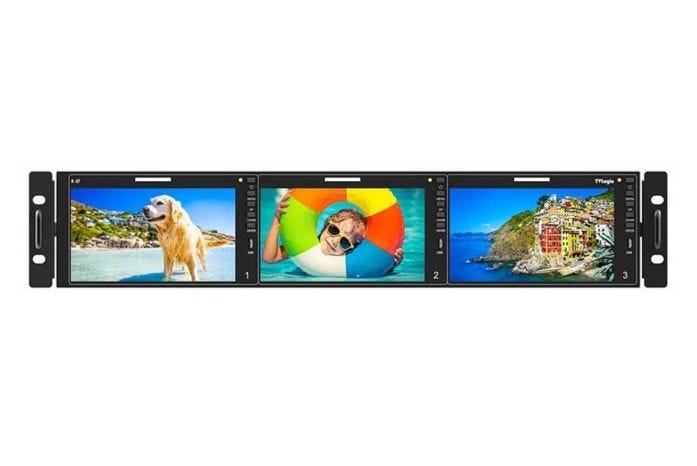

The R-5T is a brand-new rack monitor(3 x 5.5”) with advanced design and performance.

It offers an outstanding picture quality with a Full HD resolution of 1920 x 1080 and high luminance up to 500cd/㎡.

The R-5T supports the video formats up to 12G-SDI and HDMI 2.0 and the professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope and UMD.

Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

H/V Delay
Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock
Locks the knob or key control.

Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check
Displays the Luma(Y’) level of the input image in colors. Each pixel’s Y’ analyzed and changed to a certain color or zebra pattern according to the Index on the right side of the screen.

Time Code Display
Displays the Timecode information on the screen.

User Aspect
Adjusts the Width /Height display ratio.

Various Scan Modes
Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

1:1 Pixel Mapping Modes for SD/HD
Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

  • Audio Level Meter Display
  • H/V Delay
  • Key Lock
  • Luma(Y') Zone CheckLuma(Y') Zone CheckLuma(Y') Zone Check
  • Time Code Display
  • User Aspect
  • Adjusts the Width /Height display ratio.
  • Various Scan Modes

Display Spec.

Size 5.5"
Resolution 1920 X 1080 (16:9)
Pixel Pitch 0.0213(W) x 0.0639(H)
Colour Depth 16.7M
Viewing Angle 160°(H) / 160°(V)
Luminance 500cd/m2
Contrast Ratio 1,000:1
Display Area 122.7(H) × 69.0(V) mm
Input
2 X BNC SDI Input(12G-SDI x 1 / 3G-SDI x 1)
1 X HDMI HDMI Input
Output
2 X BNC 1 x 12G-SDI / 1 x 3G-/SDI OUTPUT
Input Signal
3G SDI 2.970Gbps
12G SDI 11.880Gbps
HD SDI 1.485Gbps
SD SDI 270Mb/s
HDMI 1080p(24/25/30/50/60) / 1080i(50/60) / 720p(50/60) / 480i(60) / 480p(60) / 576i(50) / 576p(50)
SDI Input Signal Formats
SMPTE 2082 3840x2160(60/50/59.94p)
SMPTE 2081 3840x2160 (30/25/24p/23.98p/29.97p)
SMPTE 425M-A/B 1080i (60/59.94/50) 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF)
SMPTE 296 720p (60/59.94/50)
SMPTE 274 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 260 1035i (60/59.94)
SMPTE 125 480i (59.94)
ITU-R BT.656 576i (50)
2K Format 2048 x 1080p (24/24sF/23.98/23.98sF)
FPGA Functions
1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom
Calibration TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
Other Functions
REMOTEGPI (RJ45)
USBFirmware update by USB memory stick
EthernetEthernet Control support
