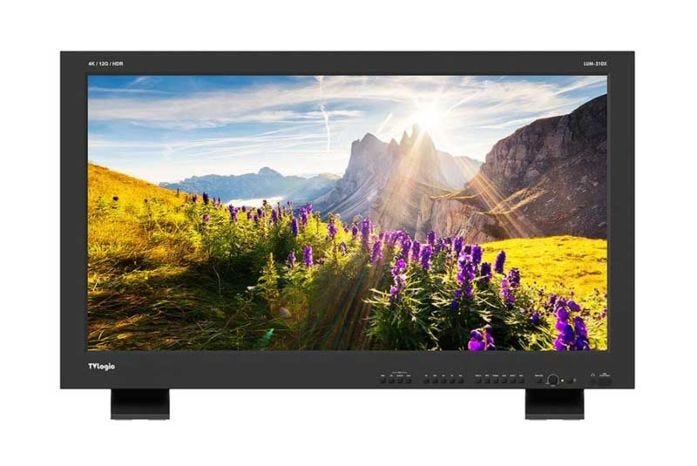

TVLogic LUM-310X 31" 4K HDR Reference Monitor
With Dual Layer LCD
The LUM-310X is a 4K HDR Reference Master production monitor with a 31-inch Dual Cell LCD designed to reproduce reference HDR content at a maximum luminance of 1,000 nits with a simultaneous deep black minimum of 0.001 nits.
This makes possible a simultaneous contrast ratio nearing 1 million to 1. The LUM-310X su pports various HDR standards and multiple color gamuts including Rec.709, DCI, and Rec.2020.
- Super-IPS 4K LCD (4096x2160)
- Dual-layer LCD Technology
- 1000 Nit peak luminance up to 1,000cd/m2
- 1 million to 1, peak contrast ratio of 1,000,000:1
- Wide Colour Gamut: Accurate Colour Reproduction
- Blue Only/ Mono
- H/V Delay
- Marker
- User Aspect
- Various Scan Modes
- Waveform/ Vectorscope
|
Display Spec. | |
|---|---|
| Size | 31.1" |
| Resolution | 4096 X 2160 (17:9) |
| Pixel Pitch | 0.1704mm |
| Colour Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 1,000cd/m2 |
| Contrast Ratio | 1,000,000:1 |
| Display Area | 698(H) x 368(V) mm |
| Input | |
| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
| Output | |
| 4 X BNC | 12G-SDI A/B,3G-SDI C/D Channel (Active Through Out) |
| Input Signal | |
| 3G SDI | 2.970Gbps |
| 12G SDI | 11.880Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
| SDI Input Signal Formats | |
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54) |
| SMPTE 296 | 720p (60/59.94/54) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF) |
| SMPTE 260 | 47.95/48/50/59.94/60p) |
| Audio | |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack) |
| FPGA Functions | 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode |
| Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708 |
| Calibration | TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
| Other Functions | |
| Remote | GPI (RJ45) |
| Remote | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | |
