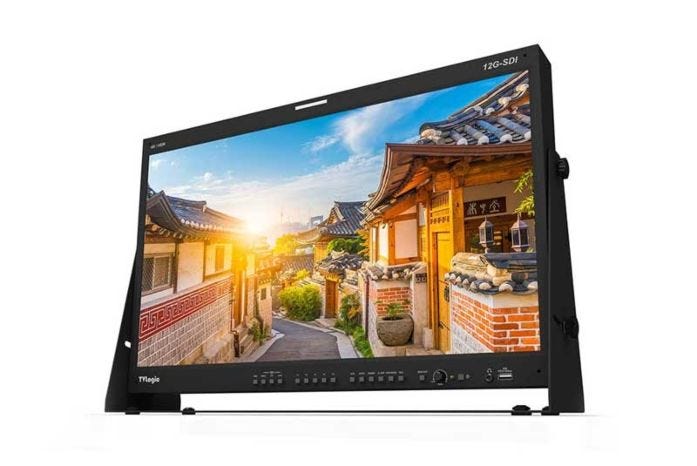

TVLogic LUM-242G 4K UHD HDR Emulation Monitor
The LUM-242G is a 24 inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide color gamut and wide viewing angle.
Equipped with 4 BNCs (2×12G-SDI + 2×3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0.
In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.
Waveform/Vector Scope
Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.
Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.
HDR Emulation
The HDR emulation function allows users to check how an HDR image will look at the shooting location. Adjustable modes are PQ, HLG and SLog3.
- 24", True UHD Resolution (3840x2160)
- Max Luminance 500cd/m2
- Color Gamut Covers up to DCI-P3 98%
- Improved Color Standard Switching Speed
- HDR Emulation (PQ,HLG,S-Log3)
- TVLogic Colour Calibration Utility
- 1.07 Billion Colours (10bit)
|
Display Spec. | |
|---|---|
| Size | 24" |
| Resolution | 3840 x 2160 (16:9) |
| Pixel Pitch | 0.137mm |
| Colour Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 500cd/m2 |
| Contrast Ratio | 1,200:1 |
| Display Area | 526(H) X 296(V) mm |
| Input | |
| 4 X BNC | 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input |
| 1 X HDMI | HDMI Input |
| Output | |
| 4 X BNC | 12G-SDI A/B,3G-SDI C/D Channel (Loop Through Out) |
| Input Signal | |
| 3G SDI | 2.970Gbps |
| 12G SDI | 11.880Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mb/s |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/2160p |
| SDI Input Signal Formats | |
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54) |
| SMPTE 296 | 720p (60/59.94/54) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF) |
| SMPTE 260 | 47.95/48/50/59.94/60p) |
| Audio | |
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack) |
| FPGA Functions | , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode |
| Closed Caption | CC-608 ANC, CC-608 LINE 21, CC-708 |
| Calibration | TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
| Other Functions | |
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | |
