SWIT S-1223FS 21.5-inch Full HD Waveform Studio LCD Monitor

SWIT S-1223FS 21.5-inch Full HD Waveform Studio LCD Monitor

S-1223FS adopts a 21.5 -inch IPS (In-Plane Switching) LCD panel, Full HD 1920×1080 resolution and LED backlight, 1000:1 contrast for accurate color reproduction. The viewing angle is Horizontal: 178° / Vertical: 178°.

Multi-format Input/Output

S-1223F supports：
2K/3G/HD/SD-SDI input×2
2K/3G/HD/SD-SDI loop ×2
HDMI input ×1
HDMI loop×1
YUV input ×1
VGA input ×1
CVBS input ×1
CVBS loop ×1
RS485 UMD input×1
RS485 UMD output×1
RS232C UMD input ×1
RS485 GPI input ×1
L/R analog audio input×1

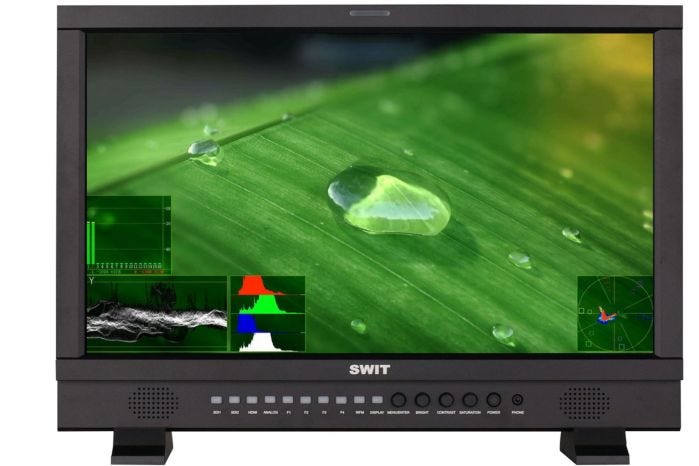

S-1223FS supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

S-1223FS supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from Up/Down/Left/Right, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

S-1223F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD inputs via RS485 or RS232C port and outputs via RS485 port.

3DLUT Color Calibration

Built-in De-Log LUTs and User LUT upload

Support 17x17x17 3DLUT accurate color calibration. Use professional color analyzer (KONICA MINOLTA CA310 e.g.) and 3DLUT calibration software (SpectralCal CalMAN5 e.g.) to measure and generate 3DLUT cube file to upload to the monitor by USB stick.
The monitor also has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm.
You can import own 3DLUTs to monitor by USB stick.

USB Firmware Upgrade

S-1223FS provides a standard USB port for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1223F monitor to upgrade, without PC connection.

Multiple Power Sources

AC adaptor / V-mount / Gold mount

S-1223FS provides a 4-pin XLR socket of DC 11-17V power input, and V-mount or Gold mount plate for outdoor using.

• 21.5-inch LCD Panel, 1920×1080 resolution
• 2K/3G/HD/SD-SDI( x2 ), HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 3DLUT 17x17x17 color calibration
• Built-in Multiple De-log 3DLuts
• User LUTs upload by USB
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• Peaking focus assist (red/blue switch)
• AFD, Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety Marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False Color, R/G/B/Mono, Zebra stripes, Internal Color Bar
• V-mount / Gold mount battery plate optional
• USB firmware upgrade
