Easy, ergonomic PTZ control of multiple remote cameras for live events production and contents creation

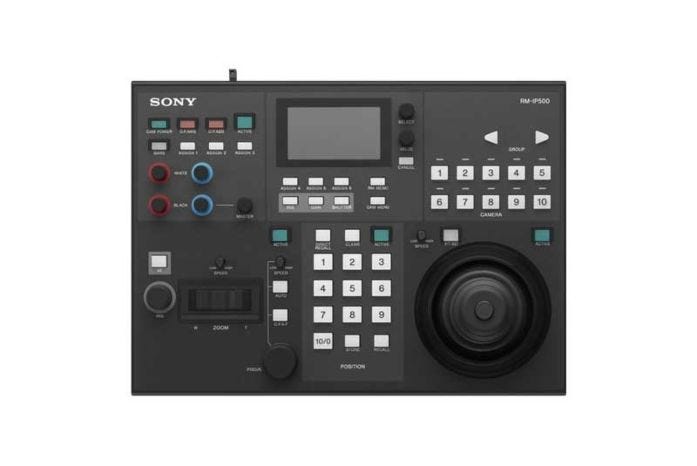

This compact remote controller features a high-quality joystick that allows effortless one-handed pan, tilt and zoom adjustments of compatible Sony PTZ remote cameras. Zoom can also be controlled via the joystick or a supplementary seesaw lever; dedicated knobs and control buttons simplify direct access to frequently-needed camera functions.
The RM-IP500 simplifies the building of cost-effective multi-camera content creation systems with a wide range of applications - from live events to conference halls, broadcast studios, education institutes and houses of worship.
PTZ speed can be adjusted from slow to fast for more polished, professional-looking results. Up to 100*¹ combinations of camera angles and settings can be stored as presets. Trace Memory*¹ allows a sequence of camera moves to be stored and recalled whenever required.
Up to 100 compatible Sony BRC or SRG Series PTZ remote cameras can be controlled over a standard IP network. Set-up's simple: the controller automatically assigns IP addresses to connected Sony PTZ cameras on the network, also assigning a camera number to each.
Full compatibility is provided with these Sony PTZ remote camera models: BRC-X400*3, SRG-X400 *3, SRG-X120*3 , BRC-X401*2,*3 , SRG-201M2*2,*3, SRG-HD1M2*2,*3 , BRC-X1000, BRC-H900, BRC-H800, BRC-H780*², SRG-360SHE, SRG-280SHE*², SRG-300SE, SRG-300H, SRG-301H*², SRG-120DH, SRG-120DS, SRG-120DU, SRG-121DH*², SRG-HD1*².
The RM-IP500 is an ideal partner for the Sony MCX-500 Multi-Camera Live Producer, creating a complete IP streaming and SD recording solution for a wide range of content production applications.
The RM-IP500/1 is a US/Canada model which is bundled with the AC-UES1230MT AC power supply and cord. In all other regions the AC power supply and cord are sold separately.
*1 Depends on camera specification. Version up might be required.
*2 China models.
*3 Requires firmware V2.10
Control Input / Output | VISCA RS-422 OUT connector: RJ-45 x 1 LAN : RJ-45 x 1, 10BASE-T/100BASE-TX automatically detected GPI I/O (Tally In/Contact Out): D-Sub 15-pin (female) |
---|---|
Control Signal Format | 9,600 bps/38,400 bps (for RS-422 communication) VISCA over IP communication |
Power Connector | JEITA type 4 (DC IN 12V) |
Input Voltage | 12V DC (10.8 to 13.2V DC) |
Current Consumption | 0.6A max. (All lamps lit), 7.2W (at 12V DC) / 0.2A typ.(2.4W) |
Operating Temperature | 0℃ to 40 ℃ (32°F to 104°F ) |
Storage Temperature | -20℃ to 60 ℃ (-4°F to 140°F ) |
Dimensions (W x H x D) | 306 mm x 159.3 mm x 224.1 mm (12 1/8 x 6 3/8 inches x 8 7/8 inches) (excluding protrusions) |
Mass | Approx. 2,400g (5 lb 4.7 oz) |
Display | Yes |
Speed Control | Yes 3 dials (PT, Zoom and Focus separately) |
Zoom Seesaw Level | Yes |
Zoom Ring of Joystick | Yes |
Zoom Control Selectable | Seesaw Lever or Ring of Joystick |
Assign Button | 6 |
Kensington Lock Hole | Yes |
Maximum IP Connections | 100 |
Maximum Serial Connections | 7 |
Control Protocol | VISCA over IP/VISCA RS-422 switchable |
Max Controller qty (/system) | 1 *1 |
Exposure Mode Selection | Yes |
One-push white balance auto adjustment | Yes |
One-push black balance auto adjustment | Yes |
Toggle colour bars output on/off | Yes |
Toggle backlight compensation on/off | Yes |
Toggle flicker compensation on/off | Yes |
Display the status of iris, gain, shutter speed and zoom position | Yes |
R gain and B gain adjustment | Yes |
R black and B black adjustment | Yes |
Master Black Adjustment | Yes |
Detail Level Display | Yes |
Detail Level Adjustment | Yes |
Knee Point Display | Yes |
Knee Point Adjustment | Yes |
AE Level Display | Yes |
AE Level Adjustment | Yes |
Iris Setting Display | Yes |
Iris Value Adjustment | Yes |
Gain Setting Display | Yes |
Gain Value Adjustment | Yes |
Shutter Speed Display | Yes |
Shutter Speed Adjustment | Yes |
* | Safety Regulations (1) Warranty (1) *2 Download Site Information (1) |
