Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card
Availability:In stock
Cat No.
20980
SKU
BMD-BDLKHDEXTR4KQUAD
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
Fast & Reliable Availability
We distribute our stock across multiple warehouses to ensure quick processing and delivery.
Need something urgently for Click & Collect?
If an item shows as in stock, please call us on 01442 292929 or email sales@proav.co.uk to confirm availability before visiting.
£72.00
£60.00
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

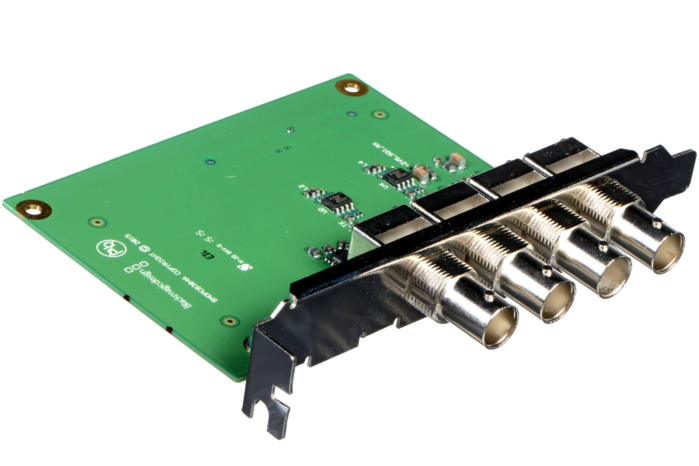

Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G
The Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G from Blackmagic Design is a replacement for the original daughter card that came with your Decklink 4K Extreme 12G PCIe board.
The daughter card features four BNC connectors that support 3G-SDI. The four connectors are grouped into two input and two output connectors that work in conjunction with the four 12G-SDI connectors on the main board. Replacing your original daughter (mezzanine) card with this one expands your cards input and output capabilities.
Replacing the original HDMI/optical fiber output daughter card with the Quad 3G-SDI board allows you to input and output a Quad 3G-SDI signal, which the main board cannot do by itself. Another input/output capability of the card is to input a 12G-SDI signal and output a Quad 3G-SDI signal.
- Requires 10.4.2 driver to operate.
- This daughter card only works when connected to the optional main board.
- For Decklink 4K Extreme 12G Main Board
- 2 x 3G-SDI Inputs, 2 x 3G-SDI Output
- Replacement for Original Daughter Card
- Blackmagic Design Decklink Quad 3G-SDI Mezzanine Card for Decklink 4K Extreme 12G
Minimum Requirements: Driver: 10.4.2
Connectors: 4 x BNC (Quad Link 3G-SDI)
