Blackmagic Design DeckLink Mini Recorder 4K

Availability:In stock
Cat No.
22971
SKU
BMD-BDLKMINIREC4K
Blackmagic Design

1 in stock for Immediate Dispatch

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

£180.00 £150.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

Product Information

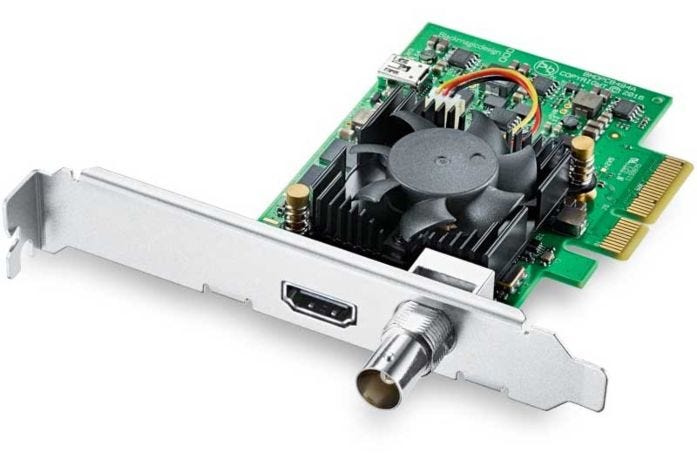

Blackmagic Design DeckLink Mini Recorder 4K

DeckLink Mini Recorder 4K is a low profile PCIe capture card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can record all formats up to 2160p30 on your computer. The SDI and HDMI inputs automatically detect and switch between all video formats. You even get high dynamic range recording and metadata over HDMI, along with support for Rec. 2020 colour space. The DeckLink Mini Recorder 4K is perfect for integrating into mobile live capture environments, broadcast trucks and more. You can even develop your own custom capture solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux. Includes two PCIe shields for both full height and low profile slots.

The new DeckLink Mini 4K models are low profile 4 lane generation 2 PCI Express cards that include 6G-SDI and HDMI 2.0a connections. This means the high quality connections support broadcast quality 10-bit YUV and 12-bit RGB video, along with the latest Rec. 2020 colour and support for high dynamic range (HDR) formats and HDR metadata. Both DeckLink Mini 4K models are fully compatible with the Blackmagic Desktop Video SDK, making them perfect for OEMs or developers that are building custom playback or recording solutions.

DeckLink Mini Recorder 4K can capture broadcast quality video directly from SDI and HDMI sources like decks and cameras to their computer. The low profile design of DeckLink Mini Recorder 4K makes it incredibly versatile and ideal for integrating into mobile live capture environments and outside broadcast trucks. Both models work with uncompressed and compressed video in open standard file formats such as QuickTime and DPX so they are compatible with virtually all professional editing, colour correction and visual effects software. That means customers can use the DeckLink Mini 4K models with software such as DaVinci Resolve, Fusion, Media Composer, Final Cut Pro, Premiere Pro and more.

Key Features -

  • Low profile PCIe capture card featuring 6G-SDI and HDMI 2.0a for all formats up to 2160p30, including HDR
  • Outputs automatically switch between all video formats
  • Support for HDR playback
  • Compatible with the Blackmagic Desktop Video SDK
  • SDI Video Input
    1 x 10-bit SD/HD/Ultra HD switchable
  • SDI Audio Input
    16 channels embedded in SD, HD, Ultra HD
  • HDMI Video Input
    1 x HDMI 2.0a connector
  • HDMI Audio Input
    8 Channels embedded in SD, HD, Ultra HD
  • Computer Interface
    Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots
  • Outputs automatically switch between all video formats
  • Support for HDR playback
  • Compatible with the Blackmagic Desktop Video SDK
  • DeckLink Mini Recorder 4K
  • Low profile slot bracket
  • SD card with software and manual
Connections
SDI Video Outputs 1 x 10 bit SD/HD/Ultra HD switchable.
SDI Audio Outputs 16 channels embedded in SD, HD, Ultra HD.
HDMI Video Outputs 1 x HDMI 2.0a connector.
HDMI Audio Outputs 8 Channels embedded in SD, HD, Ultra HD.
Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots.
Supported Codecs
  VC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Software
Software Included Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software Applications
  DaVinci Resolve, Adobe Premiere Pro CC, Avid Media Composer, Adobe Photoshop CC
Other supported applications include Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Zoom.
Video Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K DCI Video Standards 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p.
2K Video Standards (SDI Only) 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI F25PsF
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE 2081, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p60, and 8, 10-bit YUV 4:2:2 in all modes.
SDI Video Sampling 4:4:4 & 4:2:2
Color Space REC 601, REC 709, REC 2020.
HDMI Video Sampling 4:4:4, 4:2:2 & 4:2:0
HDMI Configuration HDMI 2.0a supports Deep Color and HDR.
HDMI Color Precision Up to 12-bit (Deep Color)
Multiple Rate Support HDMI and SDI video connections are switchable between SD/HD/2K and 4K.
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
Colorspace Conversion Hardware based real time.
HD to SD Down Conversion Software based down conversion during video capture.
HD Up Conversion Software based up conversion from SD to HD on capture. Selectable between 4:3 pillarbox or 16:9 anamorphic.
Physical Specifications
Length 120mm
Weight 0.9kg
Operating Systems
  Mac 10.15 Catalina,
Mac 11.0.1 Big Sur or later. Linux. Windows 8.1 and 10, both 64-bit.
Power Requirements
Power Consumption 8 Watts
Environmental Specifications
Operating Temperature 5° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included


DeckLink Mini Recorder 4K
Low profile slot bracket

Warranty

3 Year Limited Manufacturer's Warranty.
