AJA Z-OEM-LHI-NC HD/SD 10-bit Digital and 12-bit Analog PCIe Card

Availability:In stock
Cat No.
40603
SKU
Z-OEM-LHI-NC
Trustpilot
Add to Wish List A|B
AJA

Not in stock - Usually Delivered >2 weeks

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.

Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£1,854.00 £1,545.00
- +
Apple Pay
  • Free UK Delivery

    Free UK Delivery

    On orders over £75

  • Price Match

    Price Match

    Request here

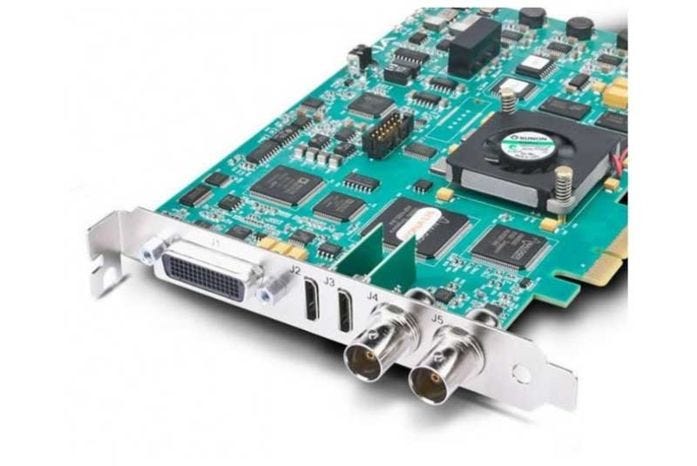

main product photo

Product Information

Z-OEM-LHI-NC HD/SD 10-bit Digital and 12-bit Analog PCIe Card

The flexibility to unlock workflows
KONA LHi provides a wide variety of formats, frame rates and audio/video sources for the connectivity you need. KONA LHi bridges the gap between analog devices and the latest 3G SDI and HDMI-enabled products to provide editing, monitoring and mastering of professional quality video in an affordable, powerful, easy to use product.

Versatile connectivity
Connecting to everything from an HDMI-enabled camera to an HD-SDI VTR, KONA LHi offers a full host of no-compromise features, including 10-bit or 8-bit uncompressed video, 2-channel AES digital audio and 8-channel SDI embedded digital audio, analog composite or S-video or SD/HD component video I/O, and 2-channel balanced analog audio I/O.

KONA LHi's HDMI 1.3a support allows you to feed a "deep colour" monitor with glorious 10-bit video, banishing video banding and preserving your gradients and rich colour palette. Only KONA LHi delivers this 10-bit deep colour HDMI support. HDMI signals can also be converted to SDI for use in more professional environments.

Integrated AJA hardware conversion
Like the KONA 3G, KONA LHi features full 10-bit, broadcast quality, motion-adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since KONA LHi's conversions are hardware-based, they are available all the time - during ingest or playback.

Outputs can be configured independently allowing you to have simultaneous HD and SD output - or two different types of HD: 720 or 1080 - output at the same time via cross-conversion.

Extensive software support
KONA LHi is supported by an extensive list of professional software for editing, visual effects, graphics and more allowing the same KONA LHi card to be used by many different applications on the same system. In addition, AJA provides several free applications that enable you to utilize the power of the KONA LHi card even without having to run a particular software package. This allows you to create unique workflows without tying up valuable resources unnecessarily

Video Formats
  • 525i 29.97
  • 625i 25
  • 720P 50, 59.94, 60
  • 1080i 25, 29.97, 30
  • 1080PsF 23.98, 24
  • 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2K
  • 2048 x 1080P 23.98, 24, 25, 29.97, 30
  • 2048 x 1080PsF 23.98, 24
Software Dependant Formats
  • 525i 23.98
  • 720P 23.98
Video Input Digital
  • 3G/SD/HD SDI, SMPTE-259/292/296/424, 8- or 10-bits
  • Single link 4:2:2 (1 x BNC)
  • HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60 (1 x mini-HDMI)
Video Input Digital
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adaptor)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
Video Output Digital
  • 3G/SD/HD SDI, SMPTE-259/292/296/424
  • Single link 4:2:2 or 4:4:4 (1 x BNC)
  • HDMI v1.3 30 bits/pixel, RGB or YUV, 2.25 Gbps, SD, HD, 1080p-50/60 (1 x mini-HDMI)
Video Output Analog
  • Composite/S-Video (Y/C) (1 x BNC/2x BNC+Adaptor)
  • NTSC, NTSCJ, PAL
  • Component (3 x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y Frequency Response
  • +/- .2 dB to 1 MHz C Frequency Response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity
Audio Input Digital
  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KLHi-Box)
Audio Input Analog
  • 2-channel, 24-bit A/D analog audio, 48kHz sample rate, balanced (via 2 x XLR on DB-25 breakout cable or optional KLHi-Box)
  • +24dbu Full Scale Digital
  • +/- 0.2db 20 to 20kHz Frequency Response
Audio Output Digital
  • 8-channel, 24-bit SMPTE-259 SDI embedded audio, 48kHz sample rate, Synchronous
  • 8-channel, 24-bit HDMI embedded audio, 48kHz sample rate, Synchronous
  • 2-channel, 24-bit AES/EBU audio, 48kHz sample rate, Synchronous or Non-synchronous, Internal sample rate conversion (via 1 x XLR on breakout cable or optional KLHi-Box)
Audio Output Analog
  • 2-channel, 24-bit D/A analog audio, 48kHz sample rate, balanced (via 2 x XLR on DB-25 breakout cable or optional KLHi-Box)
  • +24dbu Full Scale Digital (0dbFS)
  • +/- 0.2db 20 to 20kHz Frequency Response
  • 2-channel unbalanced output (via 2 x RCA jacks on optional KLHi-Box)
Up-Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
  • Zoom Letterbox: results in image zoomed to fill full screen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
Down Conversion
  • Hardware 10-bit
  • Anamorphic: full-screen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size
Cross-Conversion
  • Hardware 10-bit
  • 1080i to 720P
  • 720P to 1080i
  • 720P to 1080PsF
SD to SD Aspect Ratio Conversion
  • Letterbox: This transforms SD anamorphic material to a letterboxed image.
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop: Will transform SD letterbox material to an anamorphic image.
Reference Input
  • Analog Colour Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohm on optional KLHi-Box, terminated on supplied breakout cable
Machine Control RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box)
