Pixfra Mile 2 M413 Thermal 384x288 Imager - 13mm
Availability:In stock
Cat No.
66327
SKU
PIX-PFI-M413
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
Our stock is strategically distributed across multiple warehouses to ensure swift processing and delivery. For urgent click and collect where products are showing in stock, please call us at 01442 292929 or email sales@proav.co.uk to check for availability.
£799.96
£666.63
-
Free UK Delivery
On orders over £75
-
Price Match
Request here
Product Information

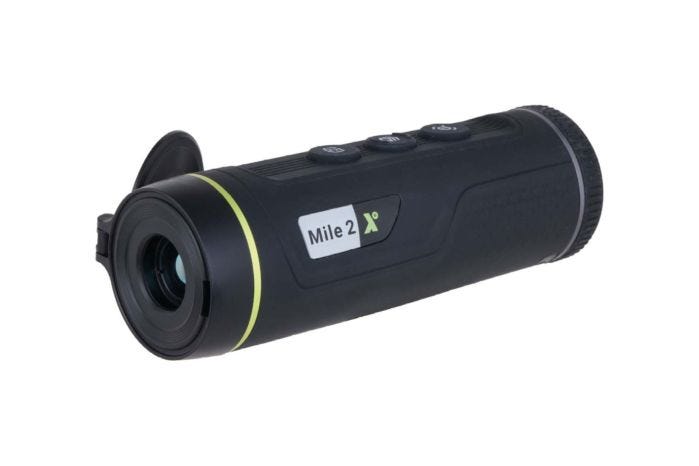

Pixfra Mile 2 M413 Thermal 384x288 Imager - 13mm
Pocket-size compactness, this device is paired with a featherweight ergonomic design, ensuring portability and comfort in handling for extended periods.
Vivid Visual Enhancement
Experience peerless image quality with an advanced 25mk NETD sensor and ultra-high 640 resolution lens, accompanied by a P3 wide color gamut AMOLED screen and a 20x magnification eyepiece.
Versatile Carrying Options for All Scenarios
With a variety of skin-friendly accessories like a soft pouch, neck strap, and wrist strap, it ensures a comfortable experience. Its centered design prevents any tilting when worn around the neck.
Innovation Button Layout
Perfect for night-time use, enabling flawless blind operation, enhancing user experience for one-handed operation, and meeting the needs of usage in dark environments.
Always Powered
Long-lasting 8-10 hour battery life for overnight use.
Effortless Sharing
Stay connected effortlessly with stable WiFi for real-time monitoring of 4 individuals.
- 384×288, 12μm, <25mK NETD thermal sensor
- 13mm f1.0 objective lens
- 700m detection range
- Built-in video recording
- Built-in Wi-Fi
- Seamless connectivity of up to 4 smart devices
| Detector Type |
Vanadium oxide uncooled focal plane detector
|
|---|---|
| Effective Pixels |
384 (H) × 288 (V)
|
| Pixel Pitch | 12 μm |
| Spectral Range | 8μm～14μm |
| Sensitivity (NETD) | ≤25 mK@f/1.0 |
| Frame Rate | 50 Hz |
| Focal Length | 13mm |
| Field of View | H: 20.9°; V: 15.7°/H: 36.9 m; V: 27.7 m (@100 m) |
| Focus Control | Manual |
| Detection Range | 700 m (2,296.59 ft) |
| Magnification | 1.40 × |
| Color Palettes | 6 (white hot/black hot /iron red/ alarm/amber/emerald) |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Aperture | F1.0 |
| Digital Zoom | 1 ×; 2 ×; 4 ×; 8 × |
| Display Screen Dimensions | 0.32 inch, OLED |
| Screen Resolution | 800 (H) × 600 (V) |
| Diopter | –5D to +3D |
| Eye Relief | 15mm |
| Uniformity Correction | Auto; manual |
| Storage | Built-in EMMC (16 GB) |
| Hot Spot Trace | Yes |
| Wi-Fi | Yes |
| Analog Output | Yes, type-C. |
| Power Supply | 5 VDC/2 A, USB Type-C |
| Battery Type | Rechargeable Lithium battery |
| Battery Capacity | 3,200 mAh |
| Battery Operating Life | ≥8.0h |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Protection | IP67 |
| Product Dimensions | 156.5 mm × 56.6 mm × 50.3 mm (6.16" × 2.23" × 1.98") (L × W × H) |
| Packaging Dimensions |
180 mm × 123 mm × 96 mm (7.09" × 4.84" × 3.78") (L × W × H)
|
| Net Weight | <320 g (0.71 lb) |
